Ultradish 24 Dbi Twistport Parabolic Dish Antenna

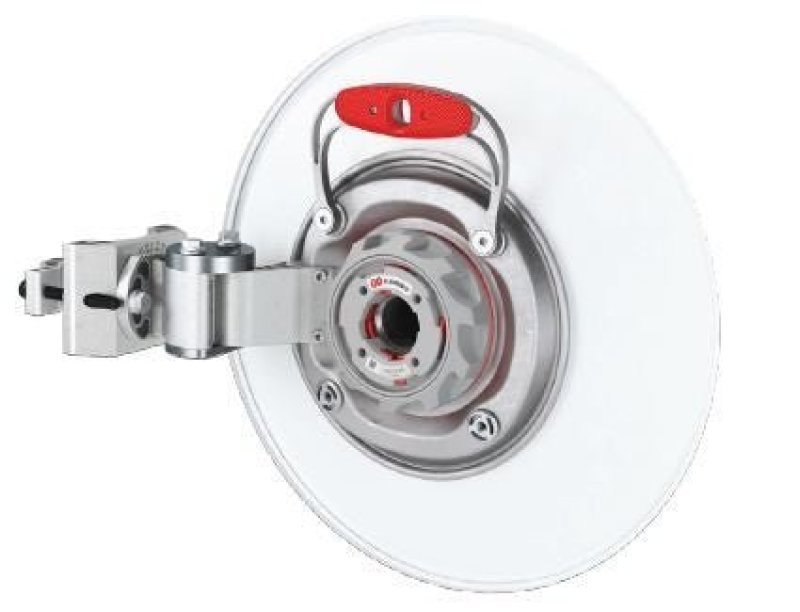

High-Performance Parabolic Dish Antenna for Demanding Networks The RF Elements UltraDish TP 24 is a high-gain parabolic dish antenna engineered for superior performance in subscriber module applications. It features the revolutionary TwistPort connector, a patent-pending quick-locking waveguide port that makes radio connection and replacement intuitive and virtually lossless.

This innovative design minimizes sidelobes and ensures stable gain across a wide frequency bandwidth, providing dependable performance in noisy environments. The antenna reflector is crafted from lightweight aluminum for a uniform shape and reduced weight. Its robust construction and IP65 rating ensure survival in harsh environmental conditions.

Key Features: TwistPort Connector: Experience a virtually lossless connection with the quick-locking waveguide port for easy radio integration. High Gain & Low Interference: With a gain of 24.4 dBi and minimized sidelobes, this antenna delivers a stable and reliable signal. Wide Frequency Range: Operates within a frequency range of 5180 - 6775 MHz for versatile deployment.

Durable Construction: Built with UV resistant ABS plastic, polycarbonate, aluminum, and stainless steel to withstand tough environments. Easy Installation: The massive mount with an improved grip supports a wide range of pole diameters for flexible and straightforward deployment. Advanced Design for Optimal Performance The UltraDish TP 24 is designed to provide excellent beam performance with suppressed side lobes, which minimizes interference in high-noise areas.

The stable gain across the entire 5.1 - 6.4 GHz band ensures reliable link performance regardless of the channel used. The stainless steel hardware is treated with a black coating to prevent seizing during installation, further simplifying the setup process. Product ID UD-TP-24 Antenna Connection TwistPort - Quick Locking Waveguide Port Antenna Type Parabolic Dish Gain 24.4 dBi Frequency Range 5180 - 6775 MHz Azimuth Beam Width -3 dB H 9 / V 8 Elevation Beam Width -3 dB H 11 / V 12 Materials UV Resistant ABS Plastic, Polycarbonate, Aluminium, Stainless Steel Environmental IP65 Pole Mounting Diameter 40 - 80 mm Temperature -40C to +60C (-40F to +140F) Wind Survival 160 km/h Wind Loading 167 N at 160 km/hour Dimensions (W x D x H) 470 x 470 x 205 mm (18.5 x 18.5 x 8.07 in) Weight 2.7 kg (5.95 lbs)
