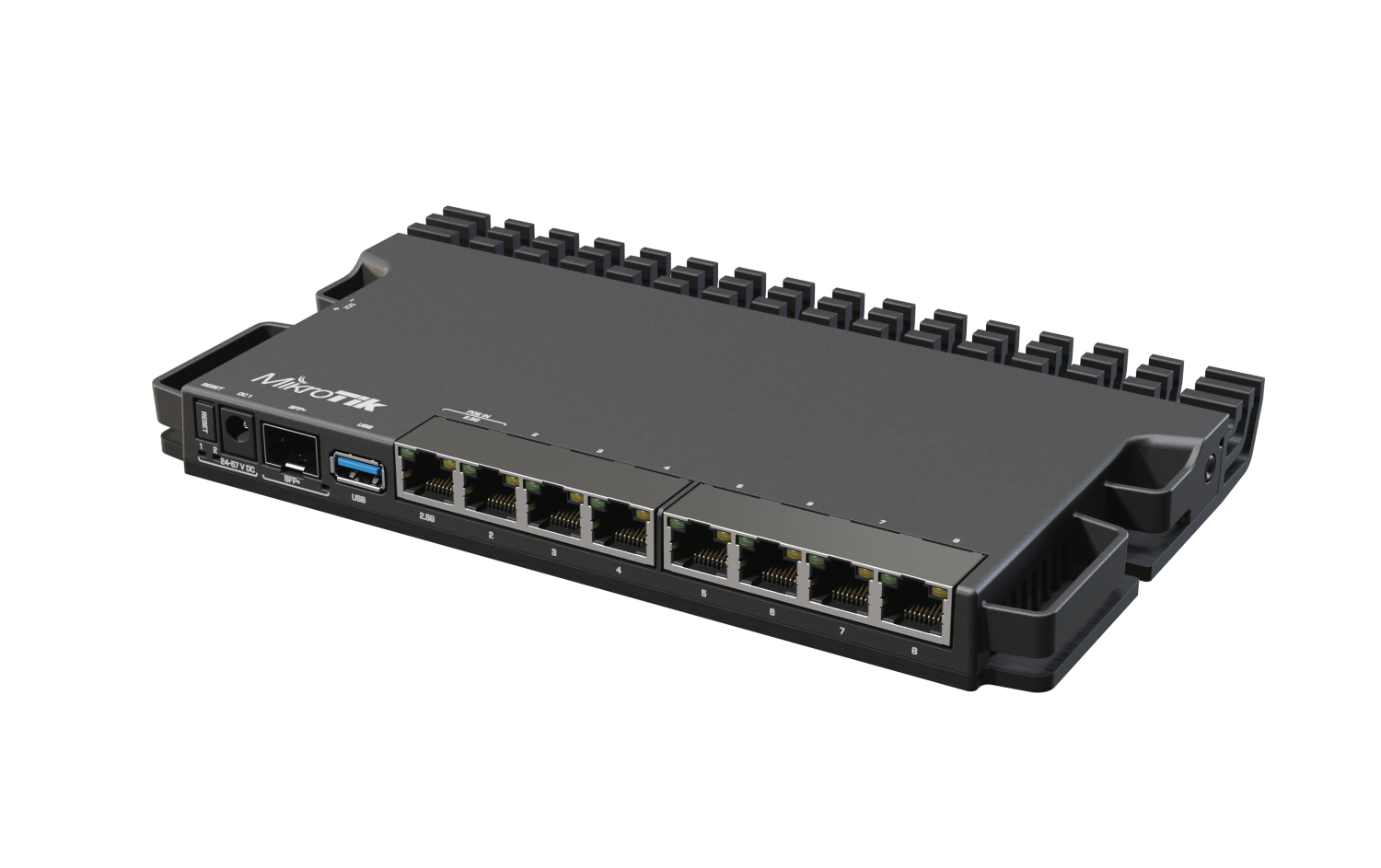

RB5009UG+S+IN 10G Sfp+ And 2.5G Ethernet Router

Unleash Peak Performance with the MikroTik RB5009UG+S+IN Router Engineered for demanding home labs and professional networks, the MikroTik RB5009UG+S+IN is a compact and powerful router that delivers exceptional performance and versatility. This heavy-duty router is equipped with a robust quad-core ARMv8 1.4 GHz CPU, ensuring it can handle high traffic volumes and complex configurations without compromising stability.

Its innovative design places the CPU and switch-chip on the bottom of the board, allowing the entire case to function as a massive heat sink for efficient passive cooling. Next-Generation Connectivity The RB5009UG+S+IN boasts a comprehensive array of ports to meet all your connectivity needs. It features seven 1 Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, and a 10G SFP+ cage for high-speed fiber connections.

A full-sized USB 3.0 port adds to its versatility. All ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line to the CPU, providing nearly double the performance in CPU-heavy configurations compared to previous models in a similar form factor. Flexible Powering and Mounting Options This router offers three distinct powering options for redundancy and flexibility: PoE-in on the first Ethernet port, a standard DC jack, and a 2-pin terminal.

Its compact and efficient design allows for up to four of these routers to be mounted in a single 1U rackmount space, making it an ideal solution for server rooms and setups where space is at a premium. Technical Specifications Product code RB5009UG+S+IN Architecture ARM 64bit CPU 88F7040 CPU core count 4 CPU nominal frequency 350-1400 (auto) MHz Switch chip model 88E6393 Dimensions 220 x 125 x 22 mm RouterOS license 5 Operating System RouterOS v7 Size of RAM 1 GB Storage size 1 GB Storage type NAND MTBF Approximately 200'000 hours at 25C Tested ambient temperature -40C to 60C Powering Number of DC inputs 3 (DC jack, PoE-IN, 2-pin terminal) DC jack input Voltage 24-57 V 2-pin terminal input Voltage 24-57 V Max power consumption 25 W Max power consumption without attachments 14 W Cooling type Passive PoE in 802.3af/at PoE in input Voltage 24-57 V Ethernet 10/100/1000 Ethernet ports 7 Number of 2.5G Ethernet ports 1 Fiber SFP+ ports 1 Peripherals Number of USB ports 1 USB Power Reset Yes USB slot type USB 3.0 type A Max USB current (A) 1.5
