Ubiquiti Unifi U7 Pro Xg 10 Gbe Tri-band Wi-fi 7 Access Point

Features

Description

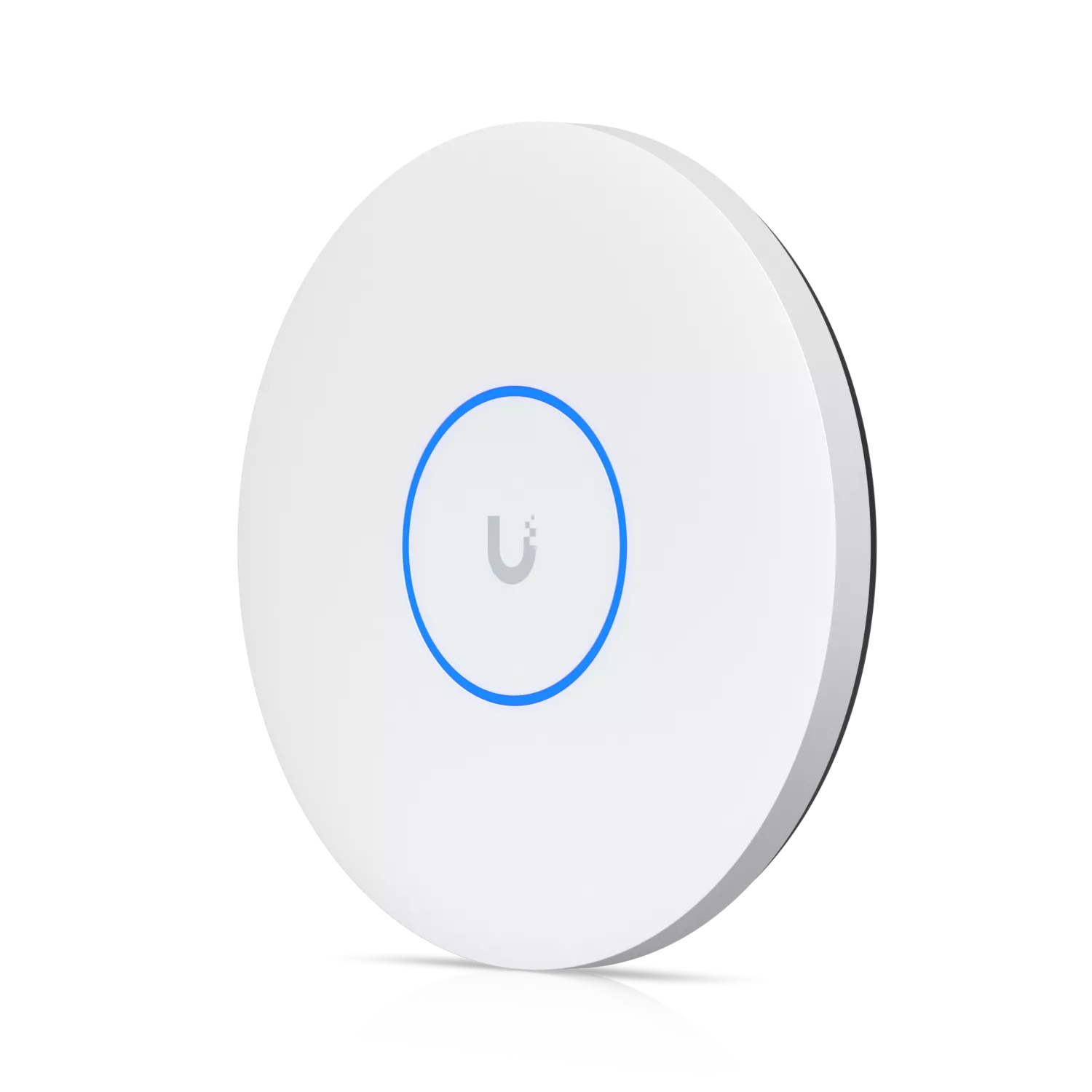

Next-Generation Enterprise Wireless: The UniFi Wi-Fi 7 Pro XG Unleash the full potential of your network with the Ubiquiti UniFi U7 Pro XG, a flagship access point engineered for the most demanding high-density environments. By leveraging cutting-edge Wi-Fi 7 (802.11be) technology, the U7 Pro XG delivers unprecedented wireless performance across three bands: 2.4 GHz, 5 GHz, and the uncongested 6 GHz band.

This powerful combination provides an aggregate throughput of over 10.7 Gbps, ensuring seamless connectivity for mission-critical applications, large-scale deployments, and future-proof networks. With its 10 GbE uplink port, the U7 Pro XG eliminates bottlenecks and provides a high-speed pathway for your data.

Peak Performance and Unmatched Capacity Designed for superior efficiency, the U7 Pro XG supports over 300 concurrent client devices while maintaining stable, high-speed connections over a coverage area of up to 140 m (1,500 ft). Its 6-stream, tri-radio design optimizes throughput and reduces interference, offering impressive data rates of up to 5.8 Gbps on the 6 GHz band, 4.3 Gbps on 5 GHz, and 688 Mbps on 2.4 GHz.

The integrated real-time spectral analysis intelligently selects the best channels to avoid interference, guaranteeing peak signal clarity and performance. Powered by PoE+, installation is simplified, allowing for flexible placement on walls or ceilings to achieve optimal coverage. Seamless Integration and Advanced Management The U7 Pro XG is managed by the intuitive UniFi Network controller, providing centralized control and deep insights into your network's health and traffic.

It supports advanced features such as wireless meshing, band steering for optimal client performance, and robust security protocols. Create sophisticated guest networks with features like branded landing pages, payment-based authentication, and guest isolation through the captive hotspot portal. Whether for a bustling office, a large venue, or a tech-forward home, the UniFi U7 Pro XG is the ultimate solution for robust, high-capacity wireless networking.

Mechanical Dimensions 206 x 32.5 mm (8.1 x 1.3") Weight 750 g (1.7 lb) Enclosure Materials UV-stabilized polycarbonate, aluminum alloy Mounting Materials Stainless steel (SUS304), galvanized steel (SGCC) Hardware Networking Interface (1) 10 GbE RJ45 port Power Method PoE+ Supported Voltage Range 42.5-57V DC Max.

Power Consumption 22W Max. TX Power 2.4 GHz: 23 dBm5 GHz: 26 dBm6 GHz: 24 dBm MIMO 2.4 GHz: 2x2 (DL/UL MU-MIMO)5 GHz: 2x2 (DL/UL MU-MIMO)6 GHz: 2x2 (DL/UL MU-MIMO) Antenna Gain 2.4 GHz: 4 dBi5 GHz: 5 dBi6 GHz: 6 dBi Software & Performance Wi-Fi Standards 802.11a/b/g/n/ac/ax/be Max. Data Rate 2.4 GHz: 688 Mbps5 GHz: 4.3 Gbps6 GHz: 5.8 Gbps Channel Bandwidth 20/40/80/160/240/320 MHz Coverage Area 140 m (1,500 ft) Max.

Client Capacity 300+ Advanced Features Wireless Meshing, Band Steering, 802.11r Fast Roaming, Guest Network Isolation, Private Pre-Shared Key (PPSK) Environmental Operating Temperature -30 to 40 C (-22 to 104 F) Operating Humidity 5 to 95% noncondensing
