Asus Prime H810M-A Wifi Intel LGA1851 Matx Motherboard

Features

Description

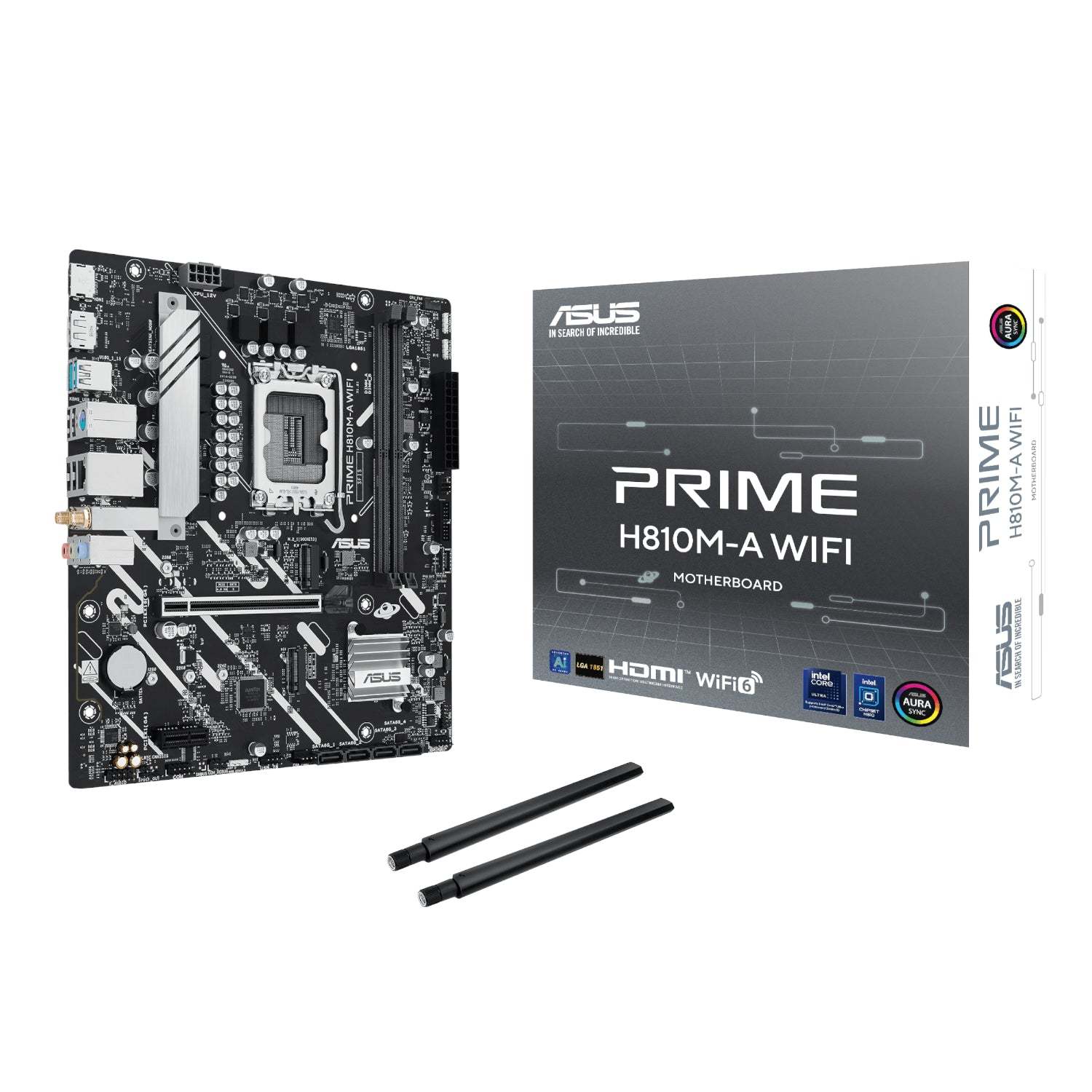

Unleash Next-Generation Power and AI-Ready Performance Engineered to unlock the full potential of the latest Intel Core Ultra Processors (Series 2), the ASUS PRIME H810M-A WIFI motherboard is the cornerstone of your next-generation PC build. This Micro ATX board is expertly crafted with a robust 6+1+1+1 phase digital power design, comprehensive cooling solutions, and intelligent tuning options, providing a stable and efficient foundation for both PC DIY builders and serious users.

It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. Blazing-Fast Connectivity and Expansion Experience a new era of speed with support for DDR5 memory, reaching up to 6400MT/s for incredible performance in gaming and multitasking. The PRIME H810M-A WIFI is equipped with a PCIe 4.0 x16 SafeSlot Core+ for your graphics card and an additional PCIe 4.0 x1 slot for expansion cards.

Storage is handled by two M.2 slots, one supporting PCIe 4.0 x4 for lightning-fast boot times and application loading, and four SATA 6Gb/s ports for traditional drives. For networking, this motherboard features built-in WiFi 6 for a stable, low-latency wireless connection and an Intel 1Gb Ethernet port for reliable wired connectivity.

Comprehensive Cooling and DIY-Friendly Design The PRIME H810M-A WIFI is engineered with multiple onboard heatsinks, including a VRM heatsink and thermal pad, to ensure your system remains cool and stable under intense workloads. A passive chipset heatsink provides optimal cooling for stable performance.

ASUS Fan Xpert 2+ software gives you comprehensive control over your fans, allowing you to optimize cooling for both CPU and GPU-intensive tasks. DIY-friendly features like the Q-LED Core help with troubleshooting during your build process. Aura Sync RGB Lighting Customize your build with ASUS Aura Sync, which offers full RGB lighting control to create a personalized aesthetic that stands out.

CPU CPU Socket LGA1851 for Intel Core Ultra Processors (Series 2) Turbo Boost Technology Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Chipset Chipset Intel H810 Chipset Memory Memory Slots 2 x DIMM, Max. 128GB, DDR5 Memory Speed Up to 6400MT/s (OC) Memory Architecture Dual Channel Memory Architecture Memory Profiles Supports Intel Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile II (AEMP II) Graphics Display Outputs 1 x DisplayPort (4K@60Hz), 1 x HDMI port (4K@60Hz) Expansion Slots PCIe 4.0 x16 1 x PCIe 4.0 x16 slot PCIe 4.0 x1 1 x PCIe 4.0 x1 slot Storage M.2 Slots 2 x M.2 slots (1 x PCIe 4.0 x4, 1 x PCIe 4.0 x2) SATA Ports 4 x SATA 6Gb/s ports Networking Wireless WiFi 6 Ethernet 1 x Intel 1Gb Ethernet USB Ports Rear USB 2 x USB 10Gbps Type-A, 4 x USB 2.0 Type-A Front USB 1 x USB 5Gbps Type-C connector Audio Audio 3 x Audio jacks Internal I/O Connectors Fan Headers 1 x CPU Fan Header, 2 x Chassis Fan Headers RGB Headers 2 x Addressable Gen 2 headers Form Factor Form Factor Micro ATX
