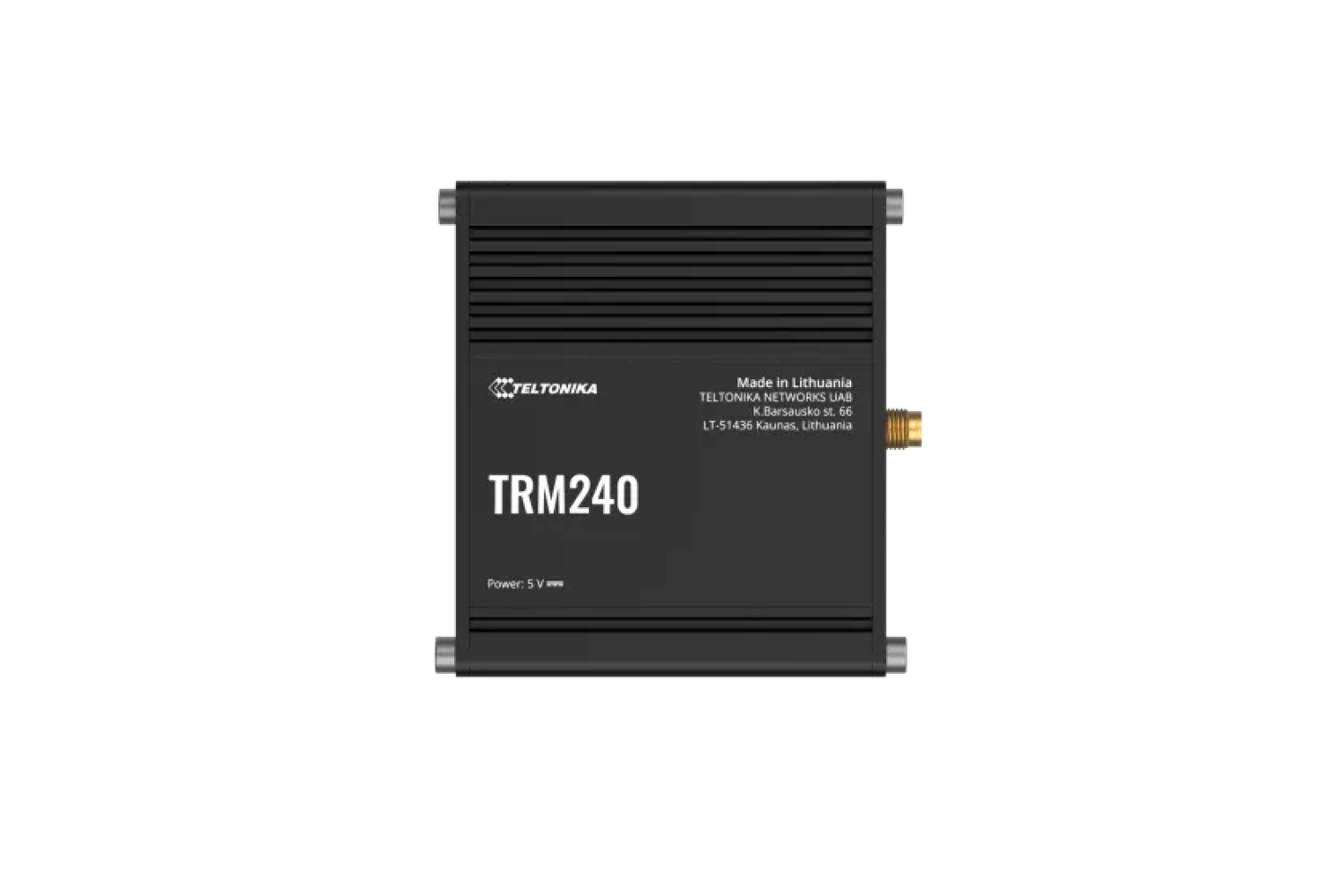

TRM240 4G LTE USB Modem

Industrial Cellular Connectivity for IoT & M2M Applications The Teltonika TRM240 is a robust and reliable industrial LTE Cat 1 modem designed to provide seamless cellular connectivity for a wide range of M2M and IoT applications. Its compact and durable aluminum housing, coupled with low power consumption, makes it the ideal choice for upgrading existing infrastructure or deploying new systems where dependable, cost-efficient connectivity is crucial.

This modem is backward compatible with 3G and 2G networks, ensuring a long and stable operational lifecycle for your projects. Engineered for Durability and Ease of Use The TRM240 is engineered to withstand harsh environments, featuring a rugged aluminum casing with an IP30 ingress protection rating and a wide operating temperature range of -40C to 75C.

Power and communication are handled through a single microUSB interface, simplifying installation and integration. An external SMA connector allows for an optimal antenna placement to achieve superior signal coverage, while status LEDs provide at-a-glance information on power, network, and LTE status.

The device is easily accessible and configurable via USB using AT Commands. Versatile and Broadly Compatible With extensive driver support for Windows, Linux, and Android systems, the TRM240 offers broad compatibility with various platforms. It supports a range of network protocols including TCP, UDP, PPP, and HTTP(S), making it a versatile solution for industrial and public infrastructure upgrades.

Whether for remote monitoring, industrial automation, or smart city applications, the TRM240 provides a cost-effective and powerful connectivity solution. Mobile Mobile Module 4G/LTE (Cat 1), 3G, 2G SIM Slot Mini SIM (2FF) Antenna Connector 1 x SMA for LTE Power Connector microUSB Input Voltage Range 5V - powered via microUSB Power Consumption 3.2 W Max Physical Interfaces Configuration Interface microUSB LED Indicators 1 x Power, 1 x Network, 1 x LTE status LEDs Physical Specification Casing Material Aluminium housing Dimensions (W x H x D) 74.5 x 64.5 x 25 mm Weight 131 g Operating Environment Operating Temperature -40 C to 75 C Operating Humidity 10% to 90% non-condensing Ingress Protection Rating IP30 Software Management Software Windows Connection Manager (NDIS driver) USB Drivers Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x Protocols TCP/UDP/PPP/FTP(S)/HTTP(S)/NTP/PING/QMI/SSL Management Interface AT Commands (3GPP TS 27.007, 3GPP TS 27.005), Hayes AT Command set, Enhanced AT Commands
