MK-V1 IP66 Standalone Access Control System With Wifi & Bluetooth

Features

Description

Robust, All-Weather Access Control Solution Secure your premises with the ZKTeco MK-V1, a rugged and versatile standalone access control device. Constructed from a durable zinc alloy and boasting an IP66 ingress protection rating, this device is built to withstand harsh environmental conditions, ensuring reliable, round-the-clock operation in any weather.

Its robust design makes it an ideal security solution for both outdoor and indoor installations. Flexible & Modern Authentication The MK-V1 offers multiple methods for user verification to suit your security needs. It supports both 125kHz and 13.56MHz RFID cards and PIN codes. This dual-frequency support provides enhanced flexibility for your access control setup.

For ultimate convenience, the device features remote control capabilities via a Wi-Fi or Bluetooth connection to the ZSmart mobile app, allowing authorized users to unlock doors from anywhere. Advanced Features & Integration Beyond a standalone device, the MK-V1 can be integrated into larger security systems.

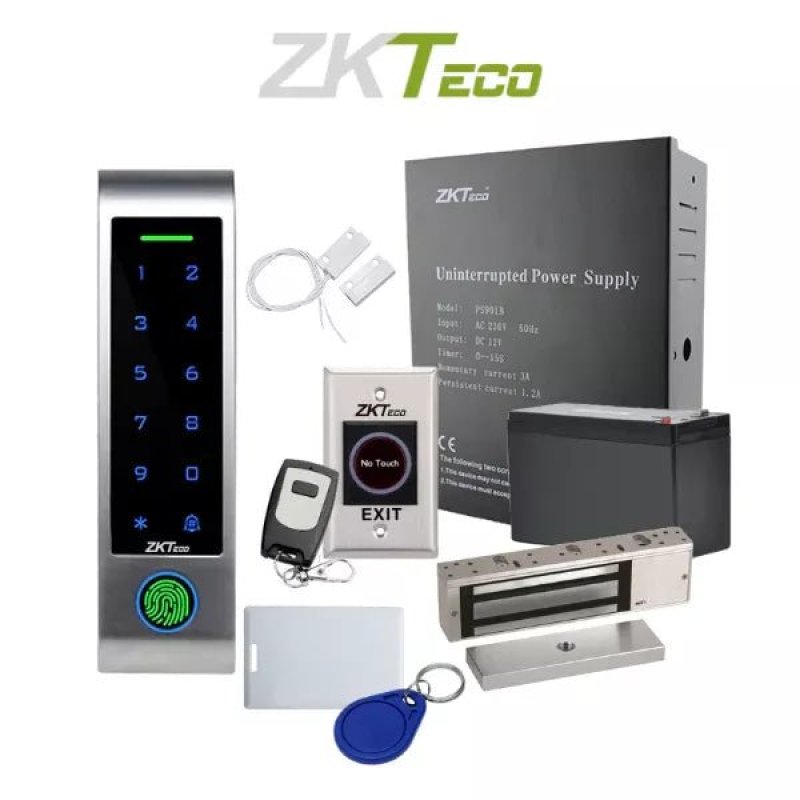

It can function as a Wiegand reader, complete with LED and buzzer outputs to indicate access status. For enhanced security, it includes a light-dependent resistor (LDR) for tamper detection. The intuitive tri-color LED and touch keypad provide a user-friendly experience. What's Included in the Kit: MK-V1 Access Control Device Magnetic Lock with ZL Bracket Exit Button Power Supply Door Sensor RFID Tags & Cards Technical Specifications Model MK-V1 Authentication Methods Card / Password Card Capacity 888 Transaction Capacity 1,000 Card Modules 125 kHz ID Card & 13.56MHz IC Card Communication Wi-Fi (IEEE802.11n/b/g), Bluetooth, Wiegand (Input & Output) Hardware CPU: CKSF030, RAM: 8KB, ROM: 64KB, Touch Keypad Ingress Protection Rating IP66 Housing Material Zinc Alloy Power Supply DC 12-18V Operating Temperature -20C to 60C Operating Humidity 0% to 98% RH (Non-condensing) Dimensions (L*W*D) 165mm * 44mm * 22mm Supported Software ZSmart Mobile App
