| Brand | Unbranded |
| Manufacturer | Teltonika |
| Model Number | TTK-TRM500 |

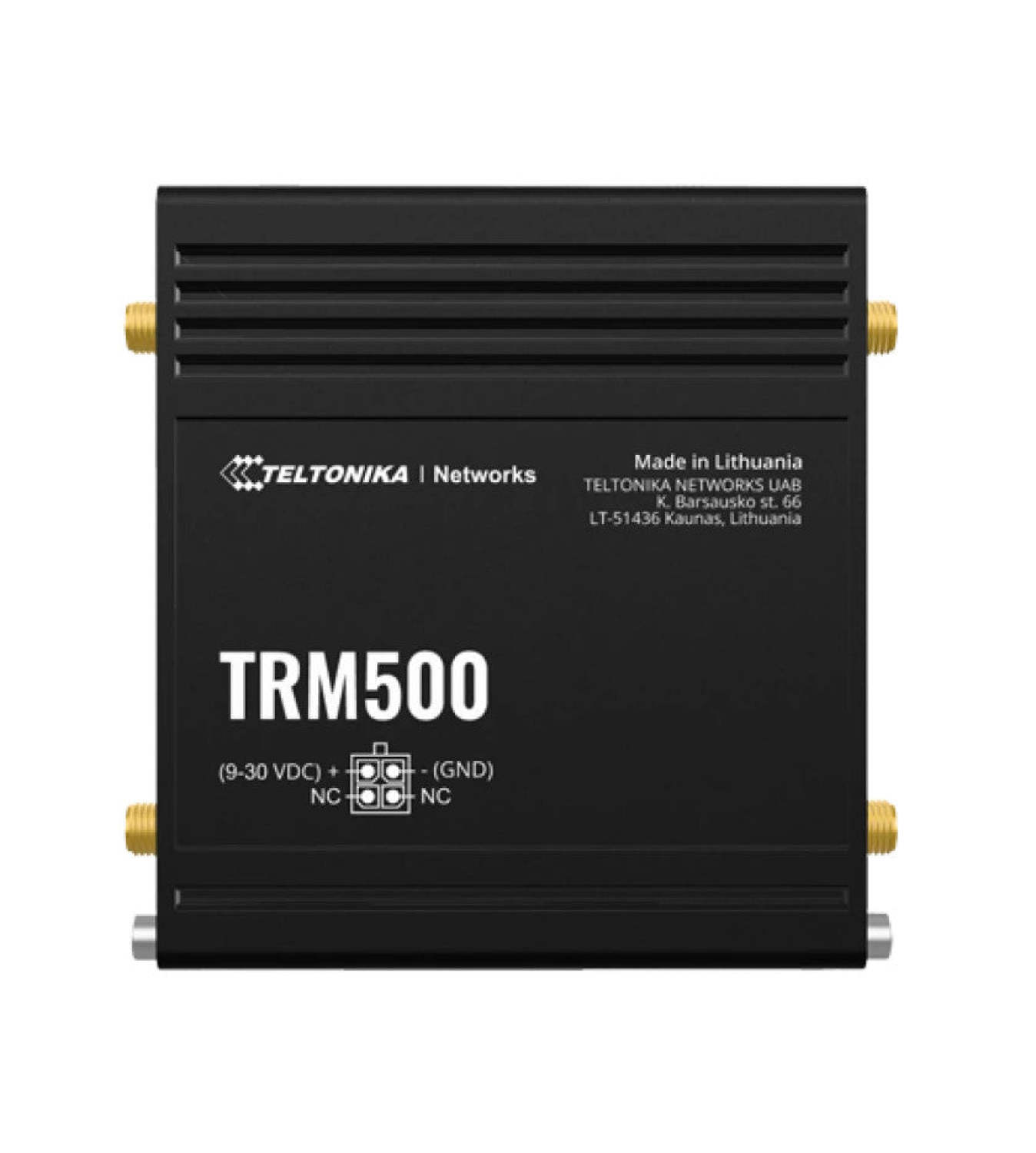

Unlock Next-Generation Industrial IoT with Ultra-Fast 5G Connectivity Experience a new era of industrial connectivity with the Teltonika TRM500, a compact and robust 5G modem designed for the most demanding applications. This device delivers ultra-high cellular speeds up to 3.4 Gbps, ensuring your operations benefit from lightning-fast data transfer and single-digit latency.
Its industrial-grade design is built to withstand extreme conditions, making it the ultimate solution for remote management, IoT deployments, and ensuring seamless communication in harsh environments. The TRM500 provides reliable, high-speed connectivity and is fully backward compatible with 4G (LTE Cat 19) and 3G networks, guaranteeing a stable connection even where 5G coverage is intermittent.
Engineered for Seamless Integration and Reliability The Teltonika TRM500 is engineered for versatility and easy integration. It features a modern USB Type-C interface that uniquely handles both high-speed data transfer and power delivery, simplifying cabling and installation. For applications requiring a dedicated power source, a 4-pin industrial DC socket is also included, supporting a wide voltage range of 9-30 VDC.
Housed in a durable anodized aluminum casing, the TRM500 is built to last. Its compact and lightweight design, combined with DIN rail and surface mounting options, allows for flexible deployment in a variety of industrial settings. Four SMA antenna connectors ensure enhanced cellular coverage and signal strength.
Key Features: 5G Connectivity: Achieves ultra-high cellular speeds of up to 3.4 Gbps for rapid data transmission. Future-Proof: Maintains connection with backward compatibility for 4G (LTE Cat 19) and 3G networks. USB Type-C Interface: Provides simultaneous network data transfer and device powering for simplified setups.
Industrial-Grade Durability: Housed in a rugged anodized aluminum casing with an IP30 rating, designed for harsh environments. Wide Operating Temperature: Reliably operates in extreme temperatures ranging from -40C to 75C. Flexible Powering: Can be powered via USB-C (5V @ 3A) or a 4-pin industrial DC socket (9-30 VDC).
Compact & Versatile Mounting: Small footprint and lightweight design with DIN rail, wall, and flat surface mounting options. Mobile Mobile Module 5G Sub-6GHz SA/NSA, 4G (LTE-FDD/LTE-TDD), 3G (WCDMA) 5G Speeds NSA: 3.4Gbps (DL) / 550Mbps (UL)SA: 2.4Gbps (DL) / 900Mbps (UL) 4G (LTE Cat 19) Speeds 1.6Gbps (DL) / 200Mbps (UL) 3G Speeds 42 Mbps (DL) / 5.76 Mbps (UL) SIM 1 x SIM slot (Mini SIM 2FF), 1.8 V/3 V Antennas 4 x SMA for Mobile Power Connector 1 x 4-pin industrial DC power socket, 1 x USB Type-C Input Voltage Range 4-pin: 9 - 30 VDCUSB Type-C: 5 VDC (host must provide 5V @ 3A) Power Consumption Idle: < 5 W, Max: < 12 W Physical Interfaces USB 1 x USB Type-C (Virtual network interface for power and data) Status LEDs 1 x Power LED, 1 x 5G LED, 1 x Network LED Reset Reboot/User default reset/Factory reset button Physical Specification Casing Material Anodized aluminum housing and panels Dimensions (W x H x D) 83 x 25 x 85.4 mm Weight 94.5 g Mounting Options DIN rail, wall mount, flat surface (requires additional kit) Operating Environment Operating Temperature -40 C to 75 C Operating Humidity 10% to 90% non-condensing Ingress Protection Rating IP30
