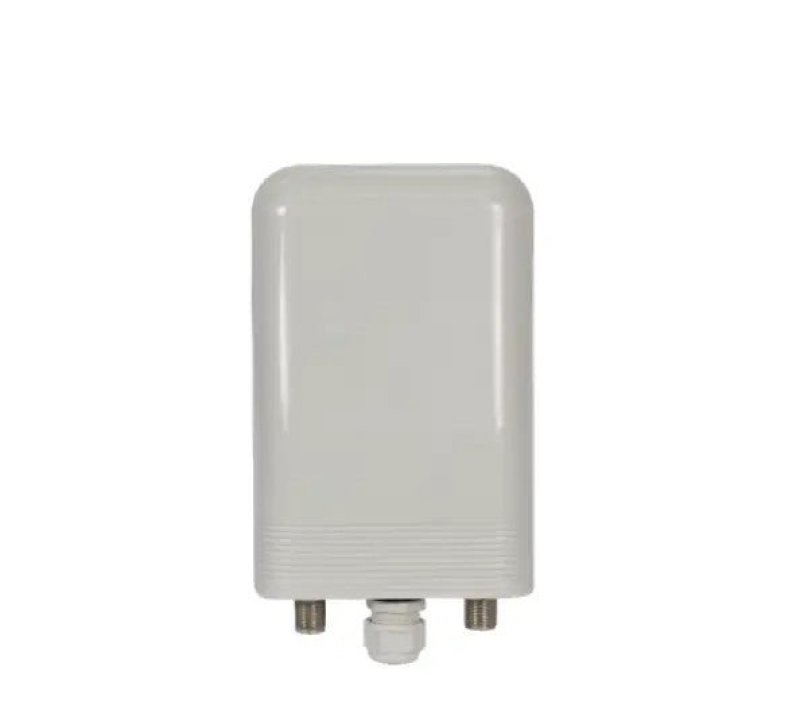

Radwin 2000 Alpha 5GHZ 500MBPS Connectorized Ptp Radio

Unleash Carrier-Grade Performance with the Radwin 2000 Alpha 5GHz PtP Radio Experience unparalleled reliability and high-speed connectivity with the Radwin 2000 Alpha, a top-tier Point-to-Point (PtP) solution designed for demanding network applications. Delivering a staggering 500Mbps net aggregate throughput, this outdoor unit (ODU) is engineered to provide robust and stable links for service providers, enterprises, and private networks.

Its connectorized design, featuring two N-Type connectors, offers the ultimate flexibility by allowing the use of high-gain external antennas to achieve extended range and optimal performance. Built to withstand the harshest environments, the Radwin 2000 Alpha is a telco-grade device that ensures consistent operation in non-line-of-sight (nLOS/NLOS) conditions and dense radio environments.

Advanced OFDM & MIMO technologies, combined with Radwin's field-proven air interface, guarantee exceptional performance and spectral efficiency in the 4.9 to 6 GHz frequency range. Whether you're deploying video surveillance backhaul, replacing leased lines, or establishing building-to-building connectivity, the Radwin 2000 Alpha provides a cost-effective, high-performance solution.

Key Features: High Capacity Throughput: Achieves up to 500 Mbps net aggregated throughput for demanding data applications. Flexible Antenna Configuration: Equipped with 2 x N-Type connectors for use with third-party external antennas, enabling customized range and performance. Robust & Reliable: Telco-grade construction ensures stable and reliable operation even in the most challenging unlicensed spectrums and harsh weather conditions (IP67 rated).

Advanced Technology: Features advanced OFDM & MIMO technologies for superior performance in nLOS/NLOS scenarios. Synchronized Operation: Supports intra-site TDD synchronization to maximize capacity and prevent mutual interference when co-locating multiple radios. Dynamic Bandwidth: Supports configurable channel bandwidths of 10, 20, 40, and 80 MHz.

Technical Specifications Category Specification Configuration Architecture Outdoor Unit with 2 x N-Type connectors for external antenna Wireless Topology Point-to-Point (PtP) / Point-to-MultiPoint (PtMP) Subscriber Unit Radio Max Capacity 500 Mbps net aggregate throughput (250 Mbps per direction) Range Up to 120 km / 75 miles Frequency Range 4.9 - 6.0 GHz Channel Bandwidth Configurable 10, 20, 40, 80 MHz Modulation 2x2 MIMO-OFDM Duplex Technology TDD Synchronization Built-in GPS for TDD Synchronization Data Interface Ethernet Interface 10/100/1000BaseT (RJ-45) Power Power Feeding Power over Ethernet (PoE) via data port PoE Injector Requires RW-POE-24V or similar 24V Passive PoE Environmental Operating Temperature -40C to +60C / -40F to +140F Humidity 100% condensing Weather Protection IP67
