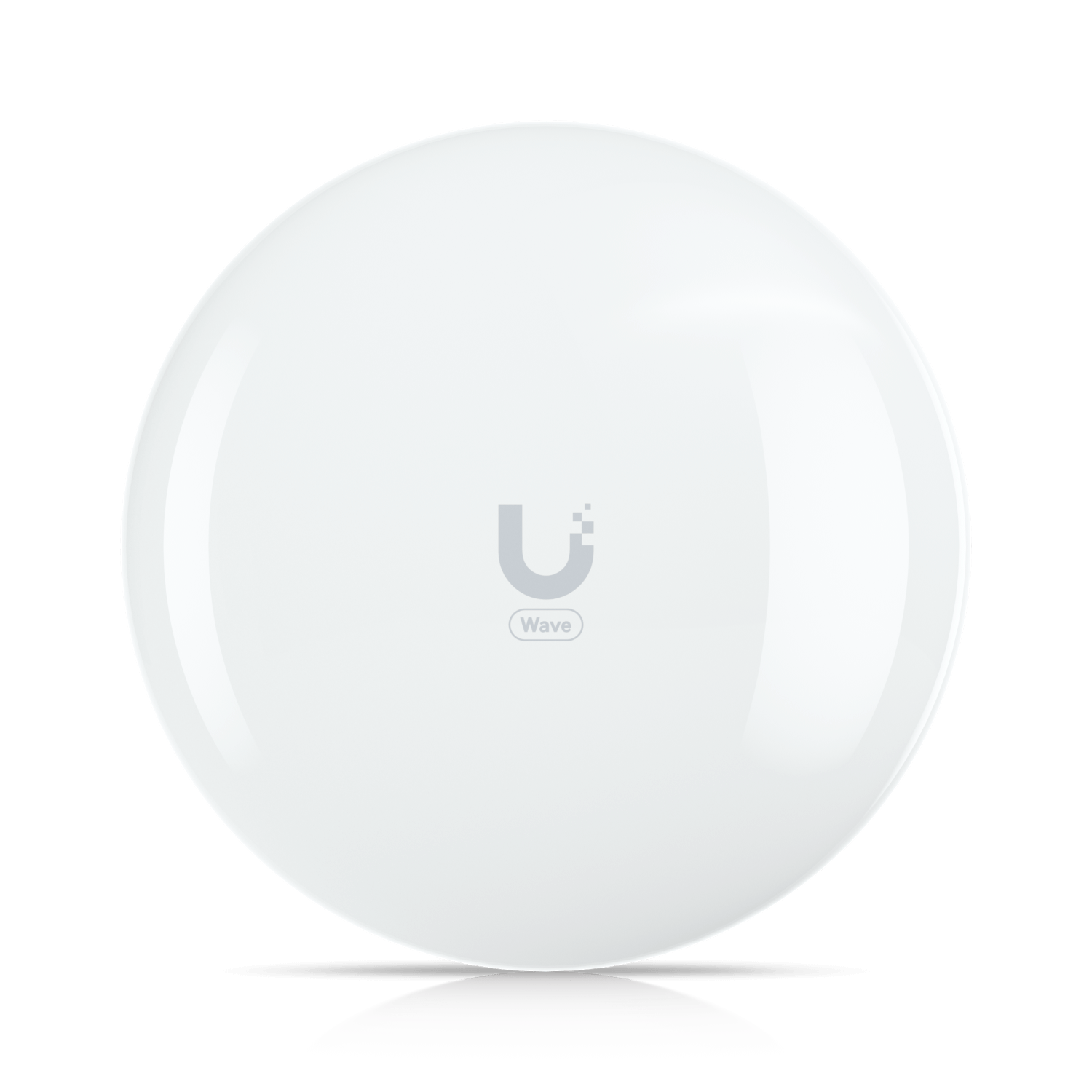

Ubiquiti Uisp Wave Pico 60GHZ Ptmp Station With 5GHZ Backup

Next-Generation Gigabit Wireless for Demanding Environments Experience unparalleled network performance with the Ubiquiti UISP Wave Pico, a compact and powerful 60GHz Point-to-MultiPoint (PtMP) station. Powered by Ubiquiti's innovative Wave Technology, this device is engineered to deliver a staggering 2 Gbps total throughput (1 Gbps duplex), ensuring your network can handle high-bandwidth applications with ease.

Its remarkably small form factor makes it an ideal solution for dense deployment environments where space is at a premium. Uninterrupted Connectivity with 5GHz Failover The Wave Pico is designed for maximum reliability. It features an integrated high-performance 5GHz backup radio, which ensures an uninterrupted connection with over 800 Mbps throughput, even in challenging weather conditions.

This automatic failover capability provides peace of mind and maintains critical network uptime. The device also supports Point-to-Point (PtP) and router modes for ultimate deployment flexibility. Simplified Setup and Management Deploying your network has never been easier. The Wave Pico includes an integrated Bluetooth radio that allows for quick and simple setup using the UISP Mobile app.

The unit is powered by the included 48V DC, 0.5A gigabit PoE adapter, simplifying installation. Management is centralized through the comprehensive UISP application, which allows for network topology viewing, advanced data analytics, and easy device configuration. Technical Specifications Hardware Processor Dual-core ARM Cortex-A53 at 1 GHz Memory 512 MB DDR3L Networking Interface (1) GbE RJ45 port Max.

Power Consumption 10W Power Method Passive PoE 2-pairs/4-pairs Power Supply 48V DC, 0.5A gigabit PoE adapter (Included) Supported Voltage Range 44-54V DC / 22-27V DC System & RF Total Throughput 2 Gbps (1 Gbps duplex) Max. Range Up to 1.3 km (with Wave AP), Up to 0.9 km (with Wave AP Micro) Operating Frequency (60GHz) 57-71 GHz (Depends on regulatory region) Channel Bandwidth (60GHz) 2160, 1080, 540 MHz Antenna Gain (60GHz) 27.7 dBi Operating Frequency (5GHz Backup) 5.180 - 5.875 GHz (Depends on regulatory region) WiFi Standard (Backup) 802.11ax (Wi-Fi 6) Antenna Gain (5GHz) 9 dBi Mechanical & Environmental Dimensions 152.1 x 55.8 mm (6 x 2.2") Weight Without mount: 347 g (12.2 oz) / With mount: 409 g (14.4 oz) Enclosure Material UV stabilized polycarbonate Weatherproofing IPX6 Wind Loading 31.3 N at 200 km/h (7 lbf at 125 mph) Operating Temperature -40 to 60 C (-40 to 140 F) Certifications FCC, IC, CE
