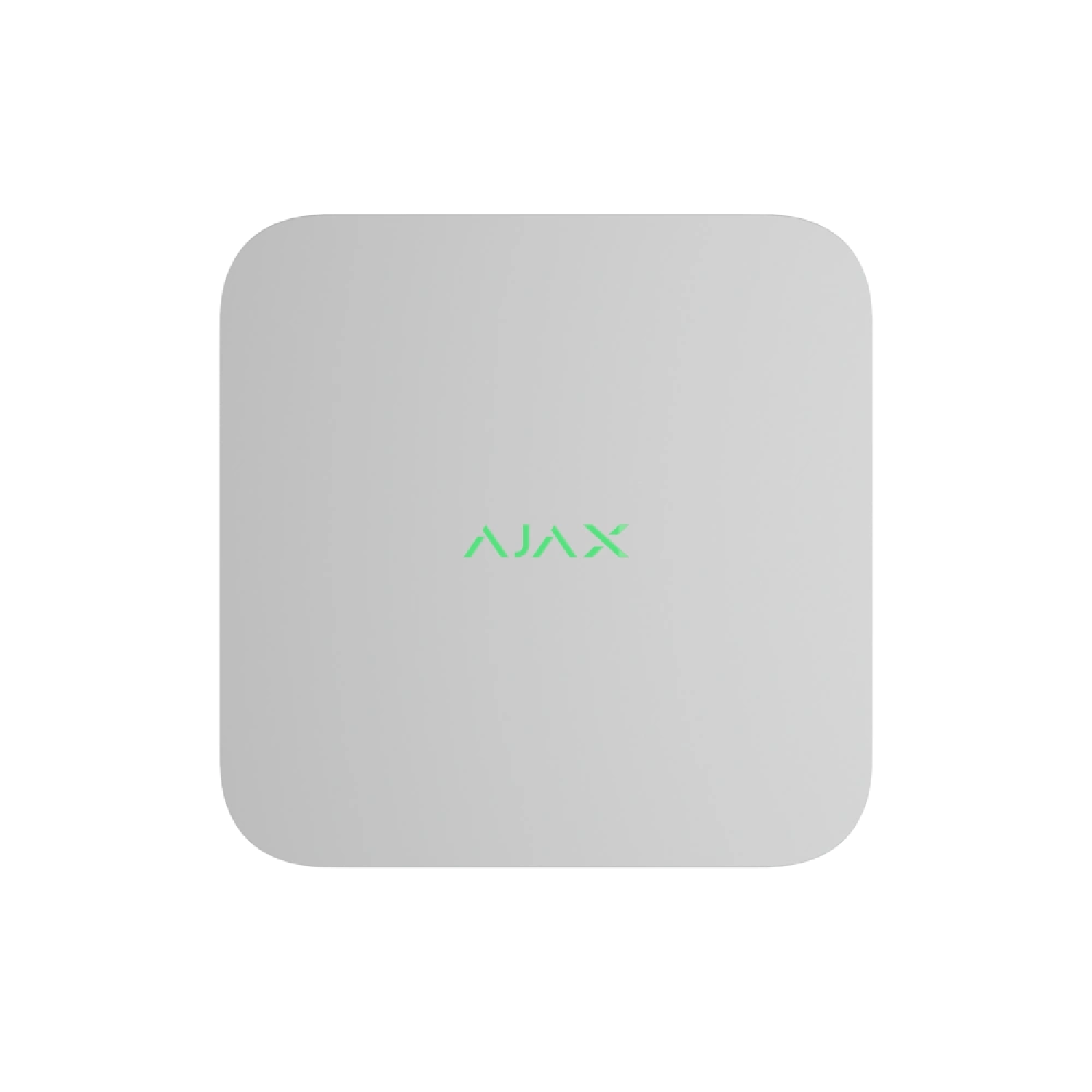

Ajax 8-CHANNEL 4K Network Video Recorder

Seamless 4K Video Surveillance with Intelligent AJAX Integration Elevate your security infrastructure with the AJAX 8-Channel 4K Network Video Recorder (NVR), the central hub for a sophisticated and responsive surveillance system. Designed for seamless integration into the Ajax ecosystem, this NVR allows you to manage up to 8 IP cameras with stunning 4K resolution, ensuring every detail is captured with crystal clarity.

Experience a new level of security with visual alarm verification, where Ajax detectors can trigger specific cameras to record, sending instant notifications to your mobile or desktop apps. High-Performance Technology for Uninterrupted Security Powered by the proprietary JetSparrow technology, the AJAX NVR delivers ultra-fast, peer-to-peer video transmission for smooth and stable streaming.

It supports high-efficiency H.265 and H.264 decoding formats to optimize storage without compromising video quality. With a bandwidth of up to 100 Mbps and support for a single 3.5" SATA hard drive up to 16 TB (not included), you have ample capacity for extensive video archives. The system is ONVIF compatible (Profile S/T), allowing for easy integration of a wide range of third-party IP cameras.

Intuitive Management and Robust Security The AJAX NVR is designed for user-friendly operation. Effortlessly set up your system by scanning a QR code and let the NVR auto-discover cameras on your local network. Manage your entire system through the Ajax apps, featuring a customizable video wall, timeline with smooth preview, and quick archive navigation.

Security is paramount, with TLS-encrypted video streams and strict privacy controls that give you complete command over data access. For physical security, a built-in tamper alarm notifies you of any attempt to detach the device. Technical Specifications Video Stream Channels 8 channels Resolution Up to 4K (25/30 FPS) IP Camera Compatibility ONVIF (Profile S/T), RTSP Bandwidth Up to 100 Mbps Decoding Formats H.265, H.264 Storage Hard Drive Support 1 x 3.5" SATA HDD up to 16 TB (HDD not included) Communication Ethernet Up to 100 Mbps Bluetooth BLE for setup Key Features Motion Detection Built-in software motion detection Visual Alarm Verification Scenario-based recording triggered by Ajax detectors In-App Management Video wall, event filters, timeline with smooth preview Sabotage Protection Tamper Alarm Notifications for detachment from surface or mounting panel Power Supply Main 110-240 V~, 50/60 Hz, 0.6 A Backup CR2032 battery (powers system clock) Enclosure Dimensions 193 x 193 x 47 mm (7.60 7.60 1.85) Weight 615 g (21.68 oz) without HDD Operating Temperature 0C to +40C (32F to 104F) Operating Humidity Up to 75% Protection Class IP20 (Indoor installation only) Complete Set NVR, SmartBracket mounting panel, Power cable, Ethernet cable, Installation kit, Quick start guide
