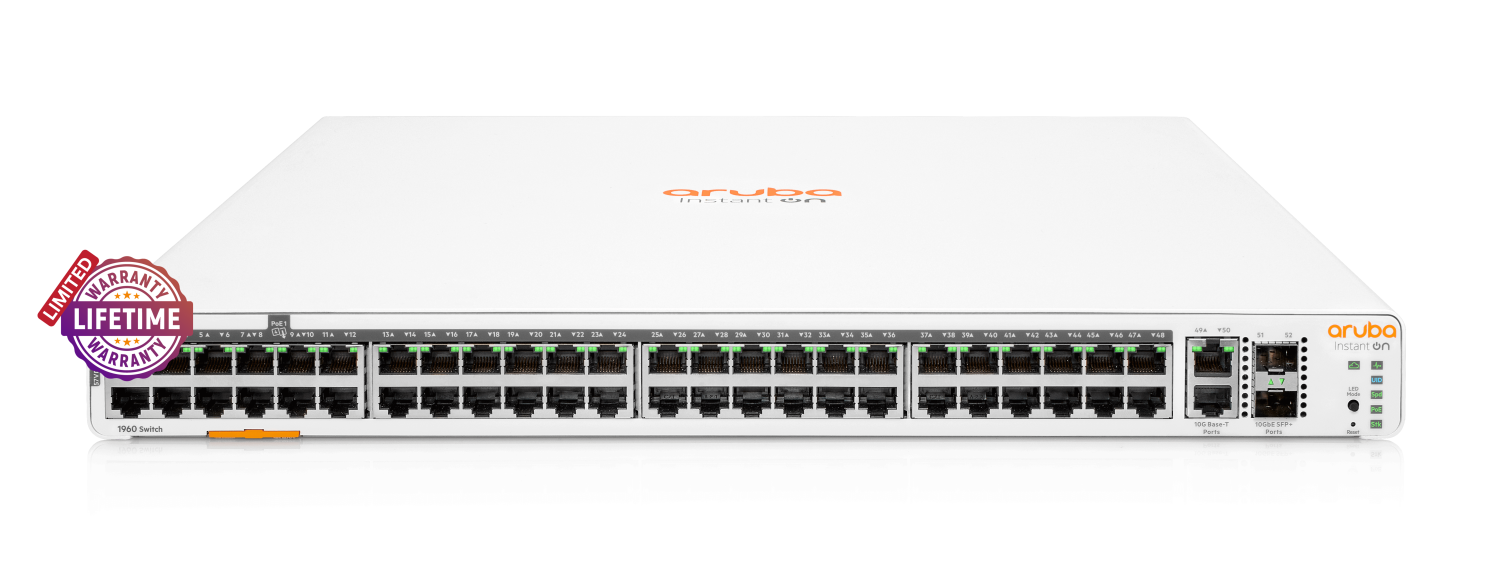

HPE Instant On 1960 48-PORT 600W Poe+ 10G Uplink Switch

Power Your Growing Business with a High-Performance, Scalable Network The HPE Networking Instant On 1960 is an advanced, smart-managed stackable switch designed for small and growing businesses with high-bandwidth demands. This powerful Layer 2+ switch provides a reliable and affordable solution that scales as your business grows, simplifying the addition of more employees, devices, and demanding applications like voice and video conferencing.

With a robust 600W PoE budget and high-speed 10GbE uplinks, it's built to handle today's connected environment, from Wi-Fi access points to IP surveillance cameras. Key Features High-Density Gigabit and 10GbE Connectivity: Features 48 Gigabit Ethernet ports, two 10GBASE-T copper ports, and two 10G SFP+ fiber ports, eliminating traffic bottlenecks and providing lightning-fast speeds for servers and network storage devices.

Powerful 600W PoE Budget: Easily power devices like access points, IP phones, and surveillance cameras directly over the network cable. It supports both Class 4 (PoE+) and high-power Class 6 (PoE++) devices. Effortless Cloud & Local Management: Set up, monitor, and manage your network from anywhere using the intuitive Instant On mobile app and cloud-based web portal, or use the local web GUI.

True Stacking for Simplified Growth: Simplify management and add redundancy by stacking up to four 1960 switches, configuring and troubleshooting them as a single entity through one IP address. Robust Security: Protect your network with advanced security features like VLANs, 802.1X with a RADIUS server, and automatic denial-of-service (DOS) protection to guard against malicious attacks.

Technical Specifications Feature Specification Model HPE Networking Instant On 1960 48G 40p Class4 8p Class6 PoE 2XGT 2SFP+ 600W Switch SKU JL809A (corresponds to ARU-IO-SW196048G-600W) Ports 48 x RJ-45 10/100/1000 PoE ports2 x 10GBASE-T ports2 x SFP+ 10GbE ports Power over Ethernet (PoE) 600W total budgetSupports IEEE 802.3at (Class 4) and 802.3bt (Class 6) Performance Switching Capacity: 176 GbpsThroughput: 131 MppsMAC Address Table Size: 16,000 entriesLatency (1 Gbps): 2.2 sLatency (10 Gbps): 1.1 s Processor and Memory Single Core ARMv7 Cortex-A9 @ 800MHz Management Aruba Instant On Cloud Portal; Web browser; SNMP Manager Stacking Up to 4 switches, local and cloud-managed Input Voltage 100 - 240 VAC Power Consumption Maximum: 790W (127V), 760W (220V)Idle: 60W (127V), 100W (220V) Dimensions (W x D x H) 44.25 x 40.28 x 4.4 cm (17.42 x 15.86 x 1.73 in) Weight 4.9 kg (10.8 lbs)
