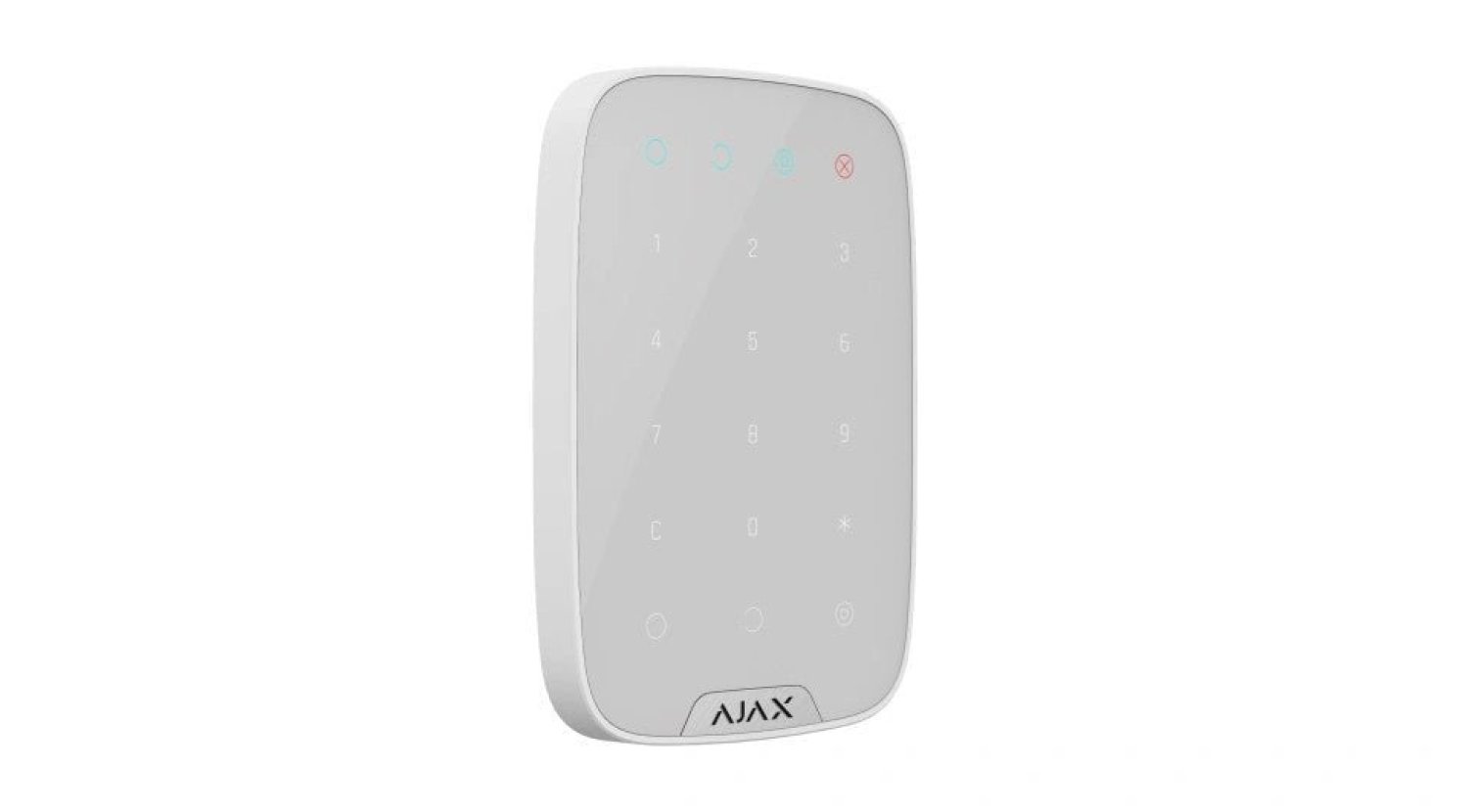

Ajax Keypad Jeweller Wireless Touch Keypad

Features

Description

Effortless Security Control at Your Fingertips Introducing the AJAX KeyPad Jeweller, a sleek and sophisticated wireless touch keypad for seamless management of your AJAX security system. Mounted near your entrance, it provides instant, intuitive access to arm, disarm, and activate night mode with a simple touch.

Its advanced security features are housed within a minimalist white design, blending perfectly with any modern interior. Uncompromising Wireless Reliability Powered by proprietary Jeweller radio technology, the KeyPad ensures secure and reliable two-way communication with the Ajax hub at a distance of up to 1,700 meters in open space.

This encrypted, anti-jamming connection is protected against forgery and tampering, providing you with constant, trustworthy protection. The system features frequency hopping and block encryption with a dynamic key to prevent spoofing and ensure all data is secure. Advanced Access & Emergency Features The KeyPad offers robust access control, supporting up to 200 personal passcodes and a single keypad code.

For emergencies, a discreet duress code can be used to send a silent alarm to the monitoring station if a user is forced to disarm the system. The keypad also features protection against passcode guessing, automatically locking after several incorrect attempts. A configurable function button can act as a panic button for immediate alerts or to mute fire alarms.

Simple Installation & Long-Lasting Power Ready to operate straight out of the box, the AJAX KeyPad Jeweller comes with pre-installed batteries that offer up to 2 years of life. Installation is quick and easy using the SmartBracket mounting panel, and the device connects to your security system in just a few clicks via the Ajax mobile app.

Technical Specifications Classification Radio channel security keypad Device Type Wireless Installation Method Indoors Compatibility Hub Plus, Hub 2, Hub 2 Plus, Hub Hybrid, ReX, ReX 2 Sensor Type Capacitive Power Supply 4 x AAA batteries (pre-installed) Battery Life Up to 2 years Jeweller Radio Technology Communication range with hub up to 1,700 m in an open space Two-way communication between devices Operating frequencies 868.0 - 868.6 MHz Self-adjusting RF output power up to 20 mW Block encryption with a dynamic key Polling period 12-300 s Access Codes Personal Passcodes: Up to 200 (depends on hub model) Keypad Code: 1 Duress Codes: Up to 200 (depends on hub model) Codes for Unregistered Users: Up to 99 (depends on hub model) Anti-Sabotage Features Protection against passcode guessing Authentication to prevent forgery Jamming detection Tamper-resistant body Operating Temperature Range From -10C to +40C Operating Humidity Up to 75% Dimensions 150 x 103 x 14 mm Weight 197 g Compliance EN 50131 (Grade 2), UL/ULC
