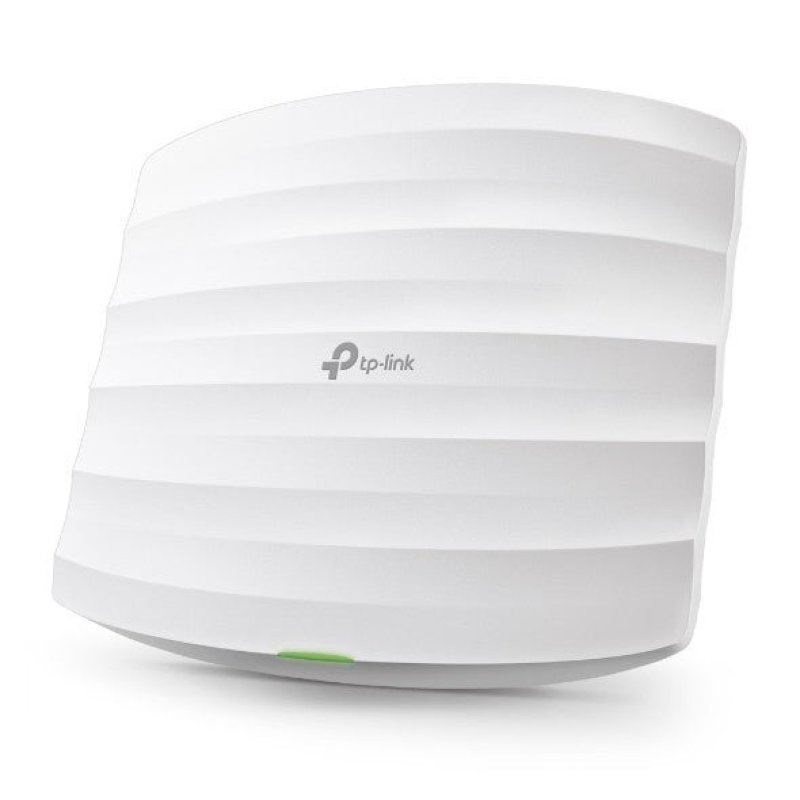

TP-link Omada EAP223 AC1350 Mu-mimo Dual-band Gigabit Ceiling Mount Access Point

Features

Description

High-Performance Business Wi-Fi with Centralized Cloud Management Elevate your business network with the TP-Link EAP223, a business-class AC1350 Ceiling Mount Access Point. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 delivers simultaneous dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at once, making it ideal for high-density environments like offices, hotels, and schools.

Its integration into the Omada Software Defined Networking (SDN) platform allows for 100% centralized cloud management from a single interface, ensuring higher efficiency, security, and reliability. Superior Speeds and Seamless Performance Experience superior Wi-Fi speeds with combined rates of up to 1317 Mbps (450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz).

Advanced features like MU-MIMO, Band Steering, Airtime Fairness, and Beamforming optimize network performance, while Seamless Roaming ensures that even video streams and voice calls are unaffected as users move between locations. Flexible Installation and Power The EAP223 features a sleek, easy-to-mount design that blends seamlessly into any wall or ceiling surface.

It supports both standard 802.3af/at PoE and 48V Passive PoE for flexible and convenient installation without the need for extra wiring (PoE adapter is not included). This allows for effortless deployment in a variety of settings. Omada SDN - The Smarter Cloud Solution The Omada SDN platform integrates network devices, including access points, switches, and gateways, providing a powerful and scalable business network.

With Zero-Touch Provisioning, centralized cloud management, and intelligent monitoring, you can manage your entire network from anywhere in the world via the cloud or the intuitive Omada app. Secure and Customizable Guest Network Create a secure and branded guest network with multiple authentication options, including SMS, Facebook Wi-Fi, and voucher systems.

Captive portal authentication ensures that only authorized guests can access the network, while abundant wireless security technologies protect your network from threats. Hardware Features Interface 1x Gigabit Ethernet (RJ-45) Port (Supports IEEE802.3af/at and Passive PoE) Button Reset Power Supply 802.3af/at PoE or 48V Passive PoE (+4,5pins; -7,8pins) - PoE Adapter Not Included Power Consumption EU: 9.7W / US: 12.1W Dimensions (W x D x H) 8.1 x 7.1 x 1.5 in (205.5 x 181.5 x 37.1 mm) Antenna Type 3 Internal Omni Antennas (2.4 GHz: 4 dBi, 5 GHz: 5 dBi) Mounting Ceiling / Wall Mounting (Kits Included) Physical Security Lock Yes Wireless Features Wireless Standards IEEE 802.11ac/n/g/b/a Frequency 2.4 GHz and 5 GHz Signal Rate 5 GHz: Up to 867 Mbps2.4 GHz: Up to 450 Mbps Wireless Functions Multiple SSIDs (Up to 16 SSIDs, 8 per band), MU-MIMO, Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Wireless Schedule Wireless Security Captive Portal Authentication, Access Control, Wireless MAC Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support Management Omada App Yes Centralized Management Omada Cloud-Based Controller, Omada Hardware Controller (OC300/OC200), Omada Software Controller Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) Other Management Features Zero-Touch Provisioning (ZTP), Email Alerts, Management MAC Access Control, SNMP, System Logging, SSH, Web-based Management Others Certification CE, FCC, RoHS Package Contents AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223, Mounting Kits, Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Linux
