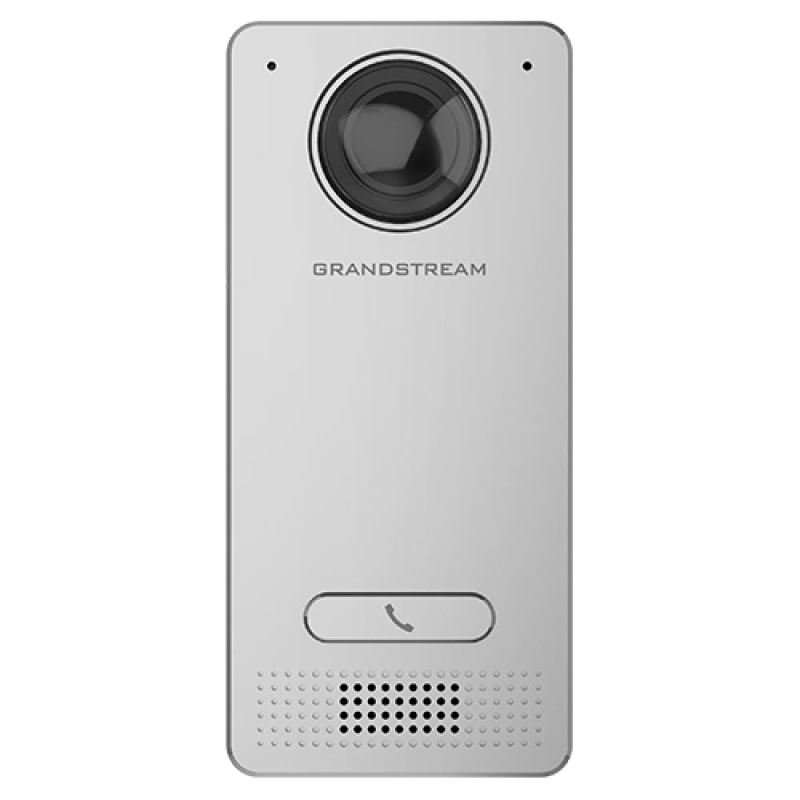

Grandstream GDS3712 1080P Hemispheric Sip Video Door System

Features

Description

Secure, Monitor, and Manage Your Entryway with Full HD Clarity The Grandstream GDS3712 is a robust IP Video Intercom System that doubles as a high-definition surveillance camera, providing comprehensive facility access control and security monitoring for any size building. Powered by an advanced Image Sensor Processor (ISP) and state-of-the-art image algorithms, it delivers exceptional 1080p Full HD video resolution without blind spots.

Its integrated SIP/VoIP technology facilitates powerful 2-way audio and video streaming directly to smartphones, SIP phones, and video intercom stations. Encased in a vandal-resistant and weatherproof metal housing, the GDS3712 is built to withstand the elements and deter tampering, making it a reliable solution for securing your premises.

Key Features: Crystal-Clear Video: Features powerful video resolutions up to 1080p, ensuring you always have a clear view of your entrance. Complete Coverage: The built-in hemispheric lens provides 180-degree wall-to-wall coverage, eliminating blind spots. Robust and Durable: Built with a metal casing, the GDS3712 is weatherproof (IP66 rated) and vandal-resistant (IK10 rated) for reliable outdoor installation.

Advanced Integration: Offers broad interoperability with most third-party SIP/VoIP devices and NVRs. It includes 2 alarm-in ports for connecting devices like door sensors or exit buttons, and 2 alarm-out relays for electric locks and light switches. Intelligent Security: Supports motion detection to trigger alerts, snapshots, or recordings, enhancing security monitoring.

Simplified Installation: Integrated PoE (Power over Ethernet) powers the device and provides a network connection with a single cable. Two-Way Communication: A built-in microphone and speaker with advanced echo cancellation provide clear intercom functionality. Comprehensive Specifications Video Video Compression H.264 High Profile / Main Profile / Baseline Profile, Motion JPEG Image Sensor 1/2.7, 2 Megapixel, 1920H x 1080V Lens Type 1/2, F2.5 Field of View (FOV) 180 (Horizontal) x 150 (Vertical) Maximum Video Resolution 1920x1080 (1080p) Multi-Stream Resolution Primary Stream: 1920x1080; Secondary Stream: 1280x720; Third Stream: 320x240 Audio Audio Built-in microphone and speaker Audio Pickup Range Up to 1.5m Networking & Integration Network Interface 1 x 10/100 Mbps auto-sensing RJ45 port PoE IEEE 802.3af Class 3 SIP/VoIP Support Broad interoperability with most 3rd party SIP/VoIP devices Alarm Input 2 channels, for door sensor or exit button Alarm Output 2 channels, for electric lock, light switch, etc.

Physical & Environmental Durability Ratings Weatherproof: IP66, Vandal-resistant: IK10 Mounting On-Wall (standard) or In-Wall (kit sold separately) Dimensions (H x W x D) On-Wall: 173mm x 80mm x 36mm Weight 0.625 kg Operating Temperature -30C to 60C (-22F to 140F)
