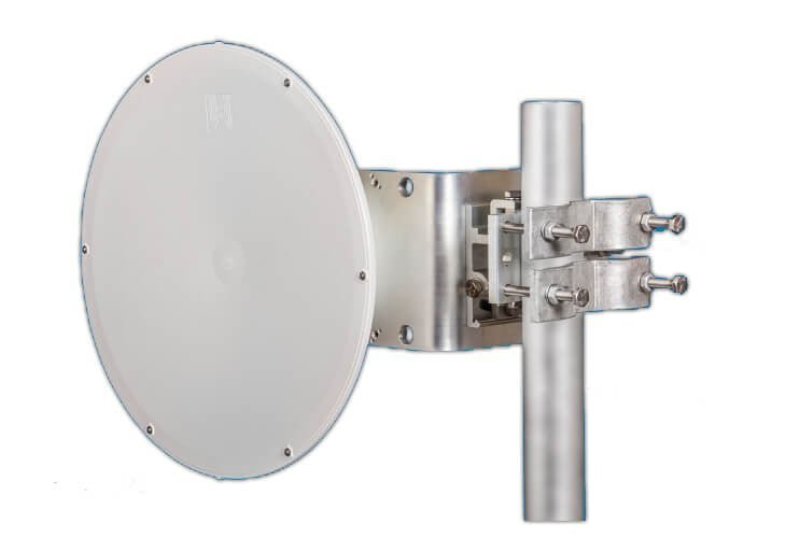

Etherhaul 1FT 17GHZ Parabolic Antenna

Unleash Gigabit-Plus Wireless Performance Experience robust and reliable, high-capacity wireless connectivity with the Siklu EtherHaul 1ft 17GHz Antenna. Engineered for excellence, this high-performance parabolic antenna is the perfect solution for demanding point-to-point (PtP) applications. Delivering a powerful 34.6 dBi gain, it ensures a strong and stable signal for your EtherHaul wireless links, even in challenging environments.

This antenna is specifically designed to operate within the 17.1 to 19.7 GHz frequency range, making it an ideal choice for licensed spectrum operations. Key Features: High-Gain Performance: With a 34.6 dBi gain at the low frequency and 35.6 dBi at the high frequency, this antenna provides exceptional signal strength and link stability.

Carrier-Grade Reliability: Built to last, the antenna features a durable aluminum alloy parabola and a UV-stable plastic radome to withstand harsh outdoor conditions. Precision Engineered: The 2.6 beamwidth ensures a focused signal, minimizing interference and maximizing throughput. Robust Construction: Designed to handle operating wind loads of up to 180 km/h (112 mph) and survive winds up to 240 km/h (149 mph).

Easy Installation: Includes a holder for mounting on masts with a diameter of 40 to 120 mm. Technical Specifications: Electrical Parameters Frequency Range 17.1 - 19.7 GHz Gain - Low Frequency 34.6 1 dBi Gain - High Frequency 35.6 1 dBi Front to Back Ratio 64 dB Beamwidth -3 dB 2.6 0.5 Return Loss 17 dB Polarization Linear, vertical/horizontal Electrical Compliance Class 3 ETSI EN 302-217-4-2 v1.5.1 Mechanical Parameters Parabola * 400 mm, Aluminium alloy Radome UV steady plastic ABS Input / Output Circle waveguide * 11 mm Installation for Mast * 40 - 120 mm Operating Wind Load 180 km/h (112 mph) Survival Wind Load 240 km/h (149 mph) Weight of Antenna 4.0 kg (8.8 lbs.) Weight of Holder 3.2 kg (7.0 lbs.) Shipping Dimensions 475 x 475 x 350 mm / 8.3 kg (18.3 lbs.)
