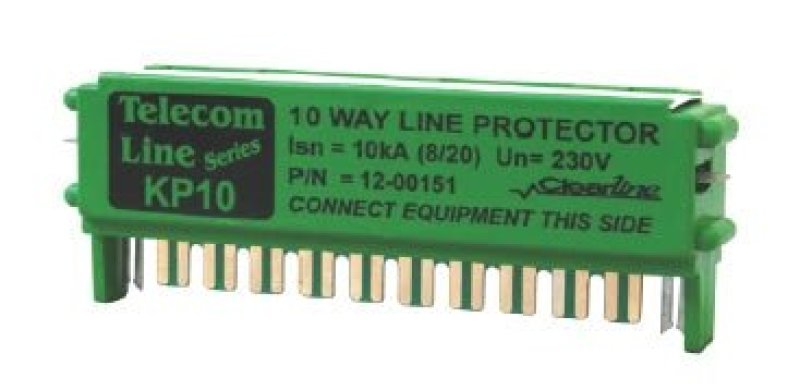

10-PAIR Analogue Signal Surge Protector

Advanced 10-Way Surge Protection for Analogue Networks Safeguard your essential telecommunication systems with the Clearline 10-Way Analogue Signal Line Protector. This device is expertly engineered to defend telecom and network equipment from the destructive power of induced lightning, AC induction, and electrostatic discharges.

Utilizing state-of-the-art semiconductor technology, it provides robust and reliable protection for up to 10 analogue line pairs. In normal operation, the protector remains transparent to your system's functioning, ensuring signal integrity. However, when a voltage surge exceeds the breakdown threshold, the advanced circuitry activates instantly, diverting harmful energy away from your sensitive equipment and ensuring its safety.

Engineered for Reliability and Performance Designed for seamless integration, this protector interfaces directly with Krone LSA Plus disconnect blocks, making it a versatile solution for a wide range of applications. It is ideal for use at telephone exchanges, remote cellular sites, building entrance terminations, and customer premises equipment.

By providing economical yet powerful protection for each pair, it significantly reduces downtime and enhances the overall reliability of your network. Key features include a low residual voltage during a surge event and a failsafe design, offering you complete peace of mind. This protector meets stringent industry standards and is backed by a 2-year warranty.

Technical Specifications Specification Value Number of pairs 10 Max. operating voltage 230VDC Max. operating current 0.3A Max. discharge current differential mode 5kA Max. discharge current common mode 10kA Residual voltage at 5kA differential mode 200V Residual voltage at 5kA common mode 200V Series resistance (per leg) 20 Temperature range 0C to +70C Failsafe fitted Yes Data speed 0.2dB @ 100kHz
