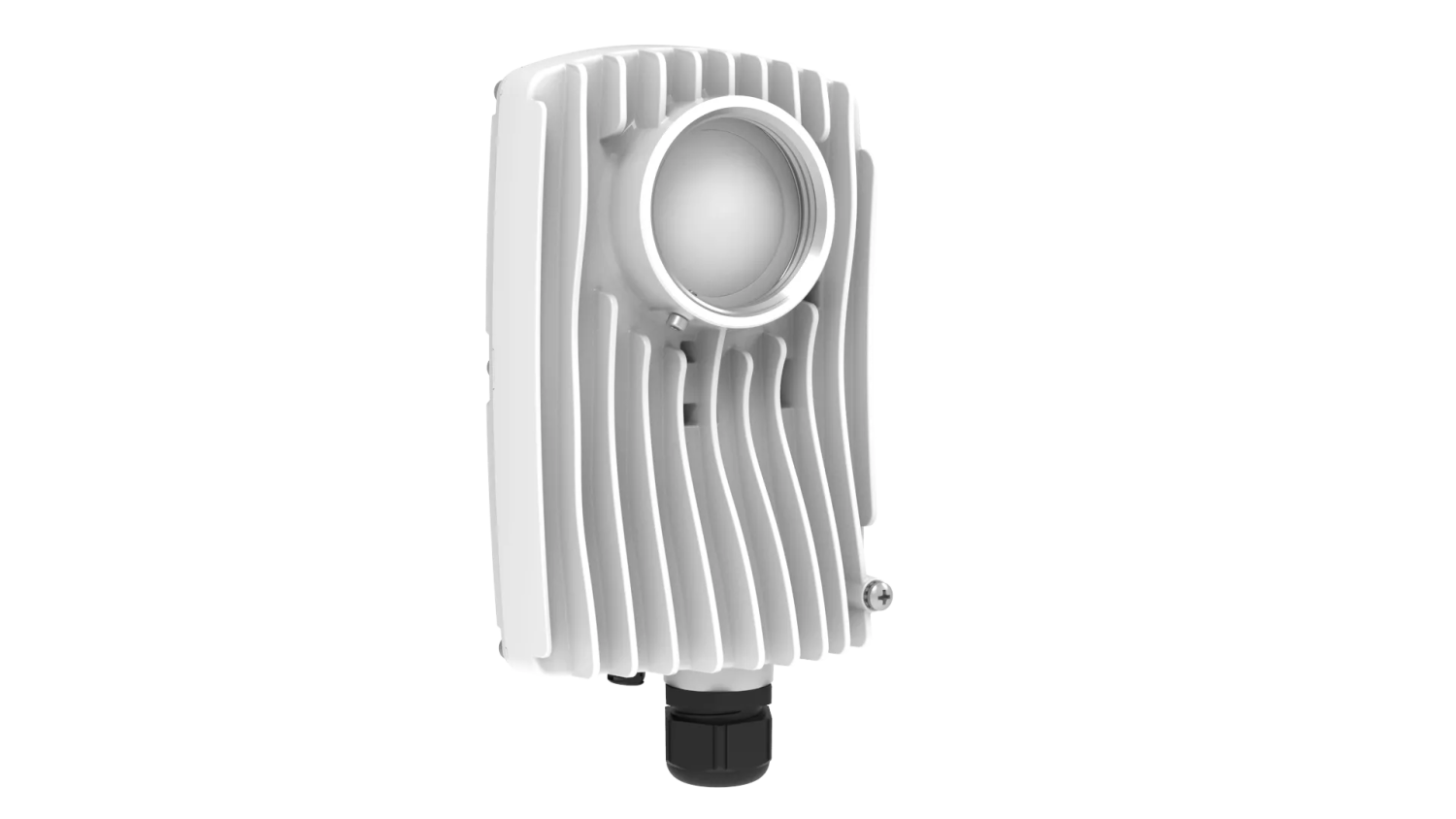

C6X 6 Ghz Modular Radio

Features

Description

Unleash Gigabit Speeds with the Ultra-Versatile Mimosa C6x Experience a new era of wireless connectivity with the Mimosa C6x, a rugged, high-performance modular radio engineered for both Point-to-Point (PTP) and Point-to-Multipoint (PTMP) deployments. This powerhouse device leverages the latest Wi-Fi 6E OFDMA technologies to deliver breathtaking speeds of up to 1.75 Gbps, ensuring ultra-low latency for your most demanding applications.

Whether you're a telecom provider enhancing your network, deploying public Wi-Fi in a dense urban environment, or in need of reliable connectivity for security and surveillance, the C6x is built to perform. Modular Design for Unmatched Flexibility The C6x features an innovative modular design that sets it apart.

The radio itself has a native 8 dBi gain, which can be effortlessly increased using Mimosa's X-series twist-on antennas. With options for 12, 16, 20, or 25 dBi gain antennas, you can easily adapt the C6x for various distances and deployment scenarios, from short-range links to long-distance backhauls.

This approach combines the simplicity of an integrated radio with the superior flexibility of a modular system. Superior Performance in Noisy Environments Don't let interference slow you down. The Mimosa C6x is engineered to excel in noisy RF environments. By utilizing Wi-Fi 6E OFDMA technology, the C6x significantly mitigates in-band noise by using smaller 2 MHz resource units, a dramatic improvement over older OFDM solutions where any noise impacted the entire channel.

When paired with the A6 access point in a PTMP setup, the C6x takes advantage of multi-user OFDMA scheduling and beamforming for massive subscriber scaling and advanced noise management. Carrier-Grade Durability Built to last, the Mimosa C6x boasts a rugged, die-cast aluminum enclosure with an IP67 rating, ensuring it can withstand the harshest weather conditions for reliable outdoor performance.

This carrier-grade construction, combined with advanced management capabilities, makes the C6x a dependable choice for mission-critical connectivity. Performance Max Throughput Up to 1.75 Gbps IP aggregate UL/DL (in PTMP), Up to 2.0 Gbps (in PTP) Wireless Protocols Wi-Fi 5/6/6E, Mimosa SRS, WiFi Interop Radio MIMO & Modulation 2x2, PTMP MU-MIMO client support, OFDMA, BPSK-1024QAM Bandwidth 20/40/80/160 MHz channels Frequency Range 5150-6425 MHz Max Output Power 27 dBm Integrated Antenna Gain 8 dBi Power Max Power Consumption 20 W System Power Method Passive PoE (24V) Physical Dimensions Height: 178mm (5"), Width: 113mm (4.5"), Depth: 67mm (2.6") Weight 0.7 kg (1.54 lbs) Enclosure Characteristics Die-cast aluminum, UV stabilized paint, with outdoor UV stable plastic radome lens Mounting Dual attached pole mount straps RF Connector Type N5-X twist-on Environmental Outdoor Ingress Protection Rating IP67 Operating Temperature -40C to +55C (-40F to 131F) Features Gigabit Ethernet 10/100/1000-BASE-T Management Services Mimosa Cloud and MMP for efficient network deployment, monitoring, and optimization Regulatory and Compliance Approvals FCC Part 15.407; IC RSS210; CE (RED, EMCD, LVD, RoHS)
