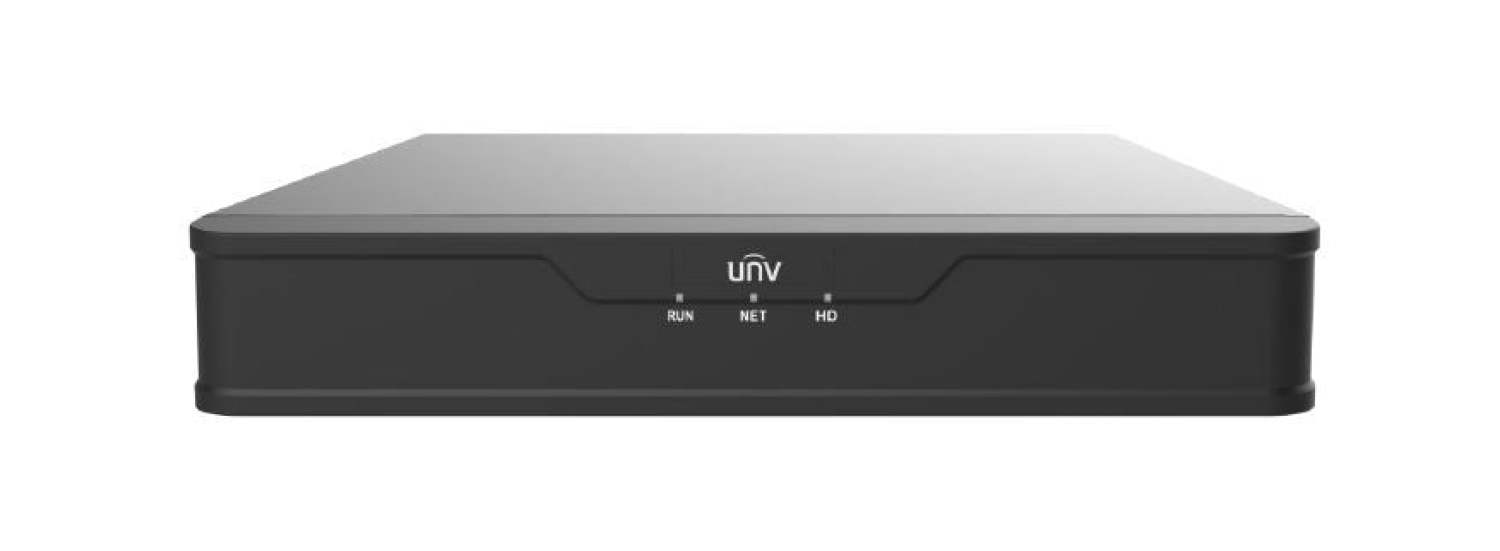

Easy Series 8-CHANNEL 4K Poe Network Video Recorder

Features

Description

Crystal-Clear 4K Surveillance with Plug-and-Play Simplicity Experience professional-grade security with the Uniview EASY Series 8-Channel Network Video Recorder. This NVR simplifies your security setup with 8 built-in Power-over-Ethernet (PoE) ports, allowing you to connect and power your IP cameras with a single network cable.

It supports recording resolutions up to 8MP (4K), ensuring you capture every detail with stunning clarity. With advanced H.265+ compression technology, you can store more footage while using significantly less storage space. Advanced Detection and Universal Compatibility Go beyond simple motion recording.

This NVR is equipped with intelligent event detection, including Intrusion Detection, Cross Line Detection, and Human Body Detection, minimizing false alarms and ensuring you're alerted to what matters most. Designed for broad compatibility, it supports mainstream cameras conforming to ONVIF (Profile S, G, and T) and RTSP protocols, making it a versatile hub for your surveillance system.

Simultaneous HDMI and VGA outputs allow for flexible viewing options on multiple monitors, with the HDMI output supporting up to 4K (3840x2160) resolution. Reliable, High-Capacity Storage The NVR features a single SATA HDD bay that can accommodate a hard drive up to 8TB, providing ample space for continuous recording.

With a robust 64Mbps incoming bandwidth, it can handle high-resolution streams from all 8 channels without compromising performance. Stay up-to-date with the latest features and security patches effortlessly, thanks to its support for cloud upgrades. Technical Specifications Video/Audio Input IP Video Input 8-ch Network Incoming Bandwidth 64Mbps Outgoing Bandwidth 48Mbps Remote Users 128 Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP Video/Audio Output HDMI/VGA Output HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, and lower resolutions.

VGA: 1920x1080/60Hz and lower resolutions. Audio Output 1-ch, RCA Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Decoding Decoding Format Ultra 265, H.265, H.264 Synchronous Playback 8-ch Hard Disk SATA 1 SATA interface Capacity Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) Smart Functions VCA Detection by IPC Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Face Detection, Ultra Motion Detection (UMD) PoE Interface 8 independent 100 Mbps PoE network interfaces Supported Standard IEEE 802.3at/af General Power Supply 48V DC Power Consumption 9 W (without HDD) Working Environment -10C ~ +55C (+14F ~ +131F), Humidity 90% RH (non-condensing) Dimensions (W*D*H) 260mm * 240mm * 46.6mm (10.2" * 9.4" * 1.8") Weight (without HDD) 1.1 Kg (2.42 lb)
