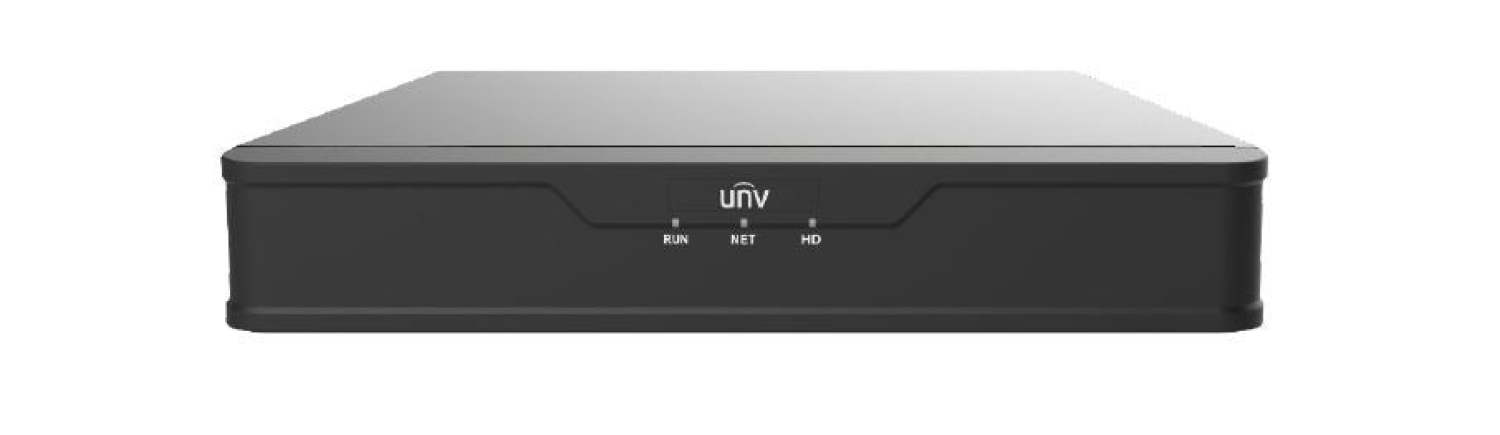

NVR301-04S3 4-CHANNEL 4K Network Video Recorder

Crystal-Clear 4K Surveillance for Your Home or Business Experience professional-grade security with the Uniview EASY Series 4-Channel 4K Network Video Recorder. This NVR is the heart of your surveillance system, supporting up to four IP cameras with stunning 4K resolution for incredibly detailed live viewing and recording.

Whether you're monitoring your property, employees, or loved ones, you won't miss a single detail. The NVR301-04S3 provides simultaneous HDMI and VGA outputs, with the HDMI output supporting resolutions up to 3840x2160, ensuring you have a crystal-clear view of your premises. Advanced Compression and Ample Storage Save on storage space without sacrificing video quality.

This NVR supports Ultra H.265, H.265, and H.264 video formats, significantly reducing bandwidth and storage requirements. This means you can store more footage on the single internal SATA hard drive, which supports a capacity of up to 8TB. With a robust incoming bandwidth of 64Mbps and an outgoing bandwidth of 48Mbps, you can be confident in smooth and reliable video transmission.

Seamless Integration and Intelligent Features The Uniview NVR301-04S3 is designed for broad compatibility, supporting ONVIF (Profiles S, G, and T) and RTSP protocols to work with a wide range of third-party IP cameras. It's also packed with intelligent features to enhance your security. The NVR can handle various smart detection alarms from cameras, including motion detection, tampering, and human body detection, and provides alerts for events like IP conflicts and network disconnection.

With support for up to 128 remote users, you can access your security footage from anywhere. Technical Specifications Video/Audio Input IP Video Input 4-ch Network Incoming Bandwidth 64Mbps Outgoing Bandwidth 48Mbps Remote Users 128 Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4 Video/Audio Output HDMI/VGA Output HDMI: 3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzVGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Audio Output 1-ch, 3.5mm Synchronous Playback 4-ch Decoding Decoding Format Ultra 265/H.265/H.264 Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30 Hard Disk SATA 1 SATA interface Capacity Up to 8TB for each disk General Power Supply 12V DC Power Consumption 5 W (without HDD) Working Environment -10C ~ + 55C (+14F ~ +131F), Humidity 90% RH (non-condensing) Dimensions (W*D*H) 260mm * 240mm * 46mm (10.2" * 9.4" * 1.8") Weight (without HDD) 0.98kg (2.16 lb)
