| Brand | Ubiquiti |
| Manufacturer | Ubiquiti |
| Model Number | UB-UA-HUB |

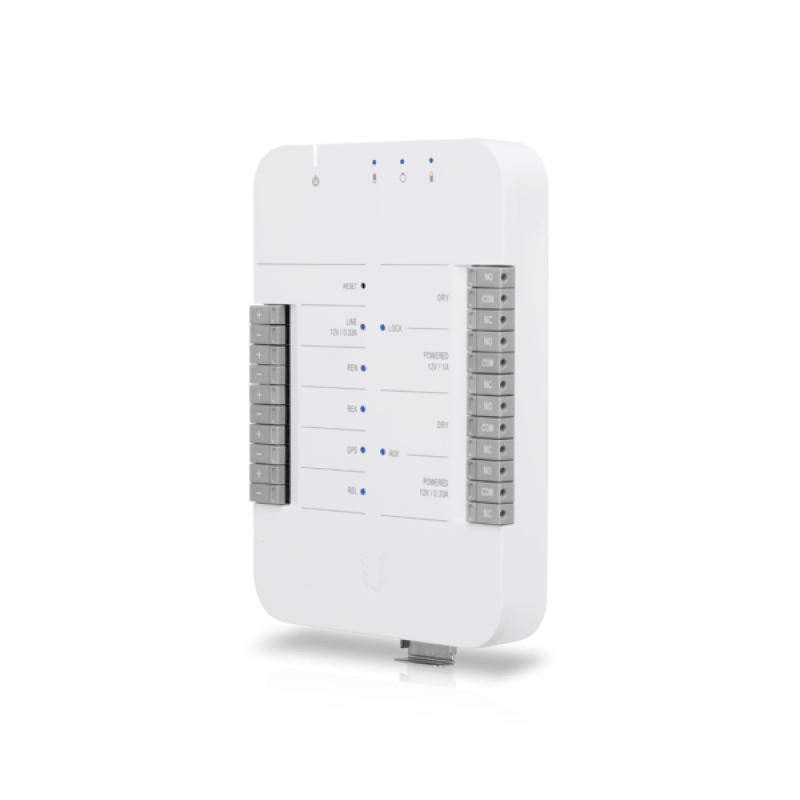

Centralized, Secure Access Control for Any Door The Ubiquiti UniFi Access Door Hub is an intelligent, IP-networked single-door controller that serves as the core of your UniFi Access solution. This hub provides a versatile and streamlined way to manage entry and exit, supporting a wide range of electric bolts, magnetic locks, and 12V access accessories.
Manage users, visitors, schedules, and access policies with ease through the intuitive, browser-based UniFi Access application. Seamless Integration and Power Powered by an 802.3bt (PoE++) switch, the UniFi Access Hub simplifies installation by minimizing wiring. It features three 802.3af PoE ports to conveniently power UniFi readers and even a G3 Flex surveillance camera for added security.
The hub is designed for seamless integration into your existing UniFi ecosystem, managed within the UniFi Access Application on a UDM-Pro or similar UniFi OS Console. Versatile Connectivity for Comprehensive Security The UA-Hub-Door is equipped with a comprehensive set of inputs and outputs to build a robust access control system.
It includes four inputs for motion sensors, request-to-exit devices, and door position switches. It also provides both 12V powered and dry relays to support most types of locks, along with auxiliary outputs for external sirens or automatic door openers. This flexibility allows for a highly customizable and secure access solution tailored to your specific needs.
Key Features: Powered by 802.3bt PoE++ for simplified installation. Three 802.3af PoE ports for connecting readers and a camera. Compatible with most electric bolts/strikes and magnetic locks. Multiple inputs for motion sensors, push buttons, and door position sensors. 12V powered and dry relay outputs for locks and auxiliary devices.
Managed with the intuitive UniFi Access Application. Convenient DIN-rail mounting. Technical Specifications Category Specification Mechanical Dimensions 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3") Weight 363 g (12.8 oz) Enclosure Material Polycarbonate Mounting Material Polycarbonate Hardware Networking Interface (5) 10/100/1000 Base-T Power Method PoE++ Max.
Power Consumption Without PoE output: 30W, With PoE output: 50W PoE Input 50V DC, 1A PoE Output PoE passthrough, (4) PoE, 50V DC, total 20W Button (1) Factory-reset Digital Input Request to exit/request to enter/remote release/door position sensor Dry Output Relay Lock: 30V DC, 1A; Aux: 30V DC, 1A Powered Output Relay Lock: 12V DC, 1A; Aux: 12V DC, 0.33A Environmental Operating Temperature 0 to 40 C (32 to 104 F) Operating Humidity 5 - 90% Noncondensing Software Management Application UniFi Access Certifications Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
