Edge-core 10 Port Gb Websmart Pro Poe Switch

Features

Description

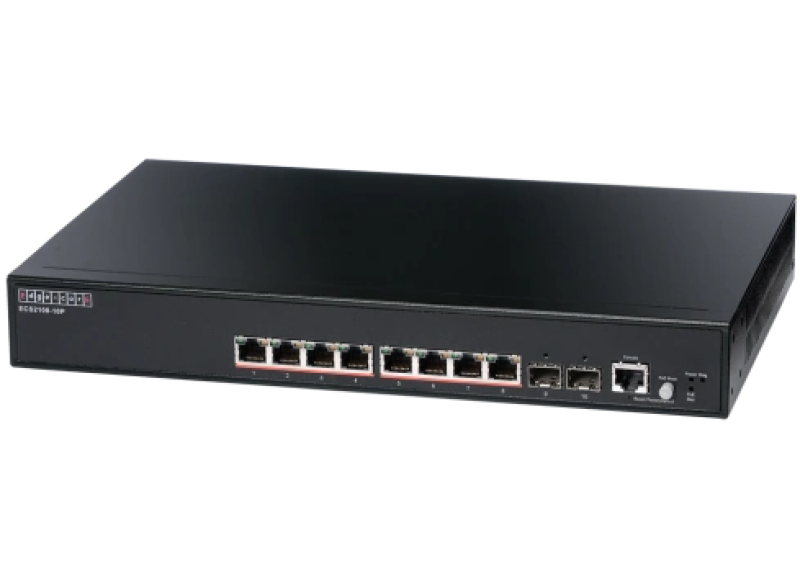

High-Performance, Silent & Versatile PoE+ Switching for Modern Networks Unlock the full potential of your network with the Edge-Core ECS2100-10P, a professional-grade Web-Smart Pro PoE+ Switch. Designed for small to medium-sized businesses and enterprise environments, this switch combines robust L2 and L3 lite features with a powerful 125W PoE budget, all within a silent, fanless design.

It's the ideal solution for powering IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices without the need for additional power outlets. Key Features Flexible Port Configuration: Features 8 Gigabit Ethernet PoE+ ports and 2 dedicated Gigabit SFP uplink ports for high-speed fiber connectivity.

Robust PoE+ Power Budget: A total power budget of 125W supports IEEE 802.3af/at standards, delivering up to 30W per port to power your essential devices. Silent & Efficient Operation: The fanless design ensures silent operation, making it perfect for deployment in noise-sensitive environments like offices and classrooms.

It also incorporates green-saving technologies like IEEE 802.3az to reduce power consumption during periods of low network traffic. Advanced Management: As a Web-Smart Pro switch, it offers a variety of management options, including a console port, for both web-smart and L2 managed switch capabilities.

It also supports L3 static routing. High Performance: With a 20 Gbps switching capacity and a forwarding rate of 14.9 Mpps, this switch can handle demanding network traffic with ease. Enhanced Security: Protect your network with advanced security features such as ACLs, Port Security, and DDOS protection.

Technical Specifications Ports 8 x RJ-45 10/100/1000BASE-T PoE Ports2 x 1G SFP Uplink Ports1 x RJ-45 Console Port Performance Switching Capacity: 20 GbpsForwarding Rate: 14.9 MppsMAC Address Table: 8KPacket Buffer: 4.1 MbitsJumbo Frames: 10K PoE Features Standard: IEEE 802.3af/atTotal Power Budget: 125WDynamic Power Allocation L2/L3 Lite Features Spanning Tree Protocol (STP/RSTP/MSTP)IEEE 802.1Q VLANs (up to 4K)L3 Static RoutingIPv4/IPv6 Support Management Web GUI, CLI, SNMP, TelnetecCLOUD Management Power Input: 100-240 VAC, 50-60 HzMax System Power Consumption: 160W Mechanical Dimensions (W x D x H): 33 x 20.4 x 4.26 cm (12.9 x 8 x 1.67 in)Weight: 2.4 kg (5.34 lb)Form Factor: RackmountAcoustic Noise: 0 dB (Fanless) Environmental Operating Temperature: 0C to 40C (32F to 104F)Storage Temperature: -40C to 70C (-40F to 158F)Operating Humidity: 10% to 90% (non-condensing)
