ASRock Phantom Gaming 360 Lcd Aio Liquid Cpu Cooler Black

Features

Description

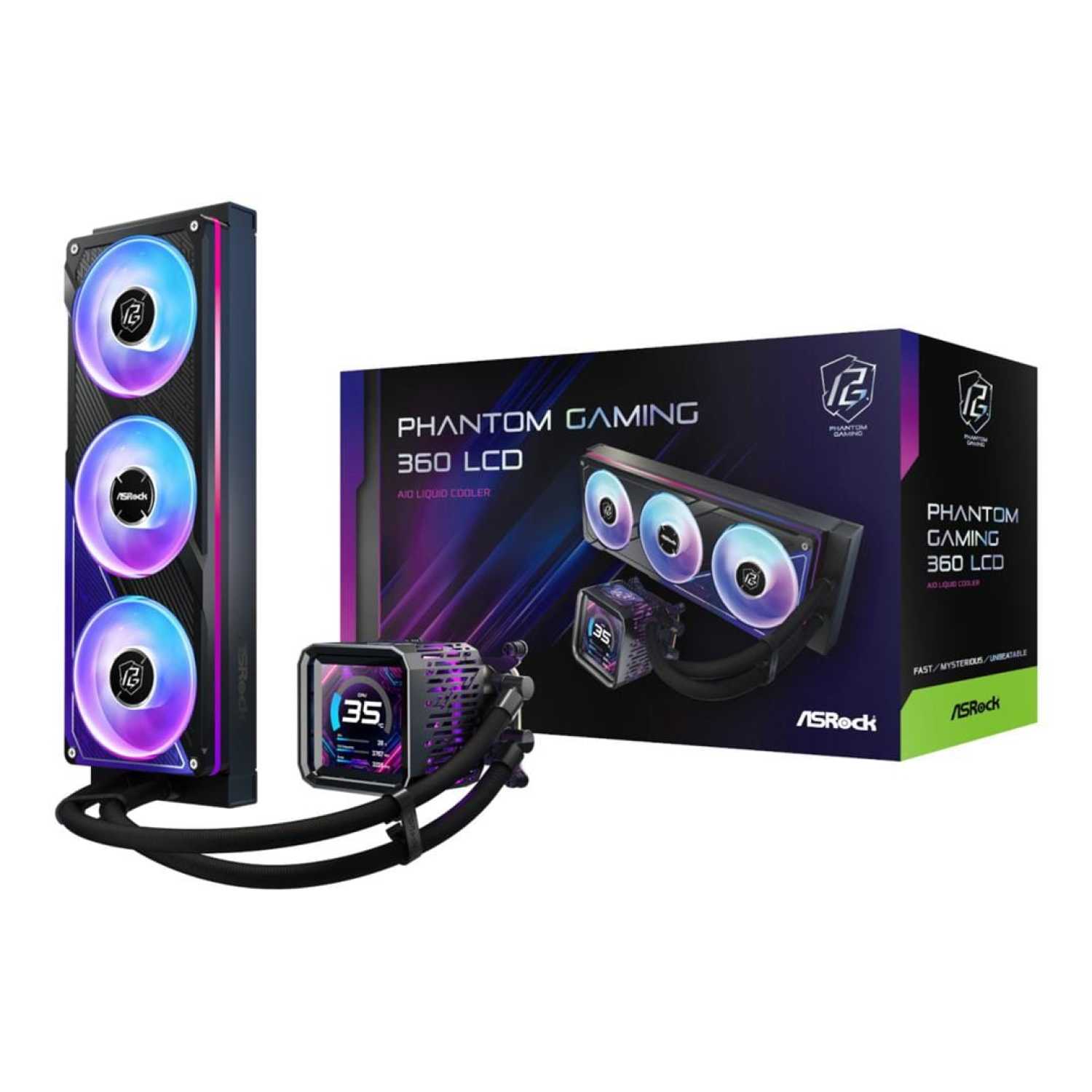

ASRock Phantom Gaming 360 LCD AIO Liquid CPU Cooler Black The ASRock Phantom Gaming 360 LCD is an all-in-one liquid CPU cooler designed for gaming PCs and performance-focused desktop builds. It combines a 360 mm-class radiator, a next-generation pump system and dedicated VRM cooling with a customisable 3.4-inch LCD display.

ARGB illumination and a unified fan-frame design complete a cooling solution built to deliver capable thermal management while keeping installation and cable routing practical. Key Features: 3.4-inch full-colour IPS LCD displays system information, images and custom animations. Next-generation three-phase, six-slot pump supports stable coolant circulation.

Dual-side inlet cooling path distributes coolant across the high-density micro-fin array. Unified 360-degree Halo ARGB fan frame provides coordinated lighting with simplified cabling. Fluid Dynamic Bearing fan design helps reduce friction and vibration during operation. 0dB cooling technology allows the radiator fans to stop under light system loads.

Supports AMD AM5 and AM4 sockets together with Intel LGA1851 and LGA1700 platforms. Customisable 3.4-Inch LCD Display The full-colour 3.4-inch IPS LCD has a 480 x 480 resolution, 24-bit colour and a 60 Hz refresh rate. Through ASRock Polychrome DISPLAY, it can present real-time system information, selected images or custom animations, allowing the cooler to become a functional and personal part of the PC build.

Next-Generation Cooling System A three-phase, six-slot, four-pole pump motor supports efficient and stable operation. The dual-side inlet cooling path shortens the coolant flow distance and distributes liquid across the micro-fin array from multiple directions, helping transfer heat away from the CPU more evenly.

Enhanced Radiator and Airflow Design The 397 mm radiator features a 32 mm-thick aluminium construction, while reinforced 7 mm tubing increases coolant capacity. Targeted airflow guides air towards heat-sensitive areas, and the reinforced striped-ring fan design supports airflow through the radiator fins and around the VRM cooling section.

Dedicated VRM Cooling A dedicated 70 mm PWM fan provides additional airflow around the CPU socket and motherboard power-delivery components. It operates at up to 3,000 RPM, helping address the reduced socket-area airflow that can occur when using an AIO liquid cooler. 360-Degree Halo ARGB Lighting The unified fan frame combines a continuous Halo lighting effect with streamlined installation.

Separate PWM and ARGB connections are carried through a simplified cable arrangement, reducing cable bulk inside the chassis. Lighting can be synchronised through ASRock Polychrome RGB when connected to a compatible ASRock motherboard, while the cooler has also passed SignalRGB compatibility testing.

Quiet Operation Under Light Loads Fluid Dynamic Bearing technology helps reduce fan friction and vibration for stable operation. With 0dB cooling technology, the radiator fans can stop completely under light loads, reducing unnecessary fan noise when intensive cooling is not required. Practical Installation The universal mounting system supports current AMD and Intel desktop platforms.

A detachable magnetic water-block cover can be rotated to suit different mounting orientations, while the unified fan frame and included tube clips help simplify installation and maintain orderly cable and tubing placement. Technical Specifications: Specification Details Brand ASRock Product Name Phantom Gaming 360 LCD Model Number / MPN 90-APGA36-BAAGA5 Product Type All-in-one liquid CPU cooler Colour Black Platform Compatibility AMD Socket Support AM5 and AM4 Intel Socket Support LGA1851 and LGA1700 Water Block and Pump Water Block Dimensions 100.4 x 86 x 107.6 mm Cold Plate Material Copper Water Block Lighting ARGB Pump Design Three-phase, six-slot, four-pole motor Pump Speed 1,2003,100 RPM 10% Pump Connector 4-pin PWM Pump Current / Voltage 0.38 A / 12 V Radiator and Fan Radiator Dimensions 397 x 120 x 32 mm Radiator Material Aluminium Unified Radiator Fan Dimensions 362 x 123 x 28 mm
