Ajax Curtain Outdoor White

Features

Description

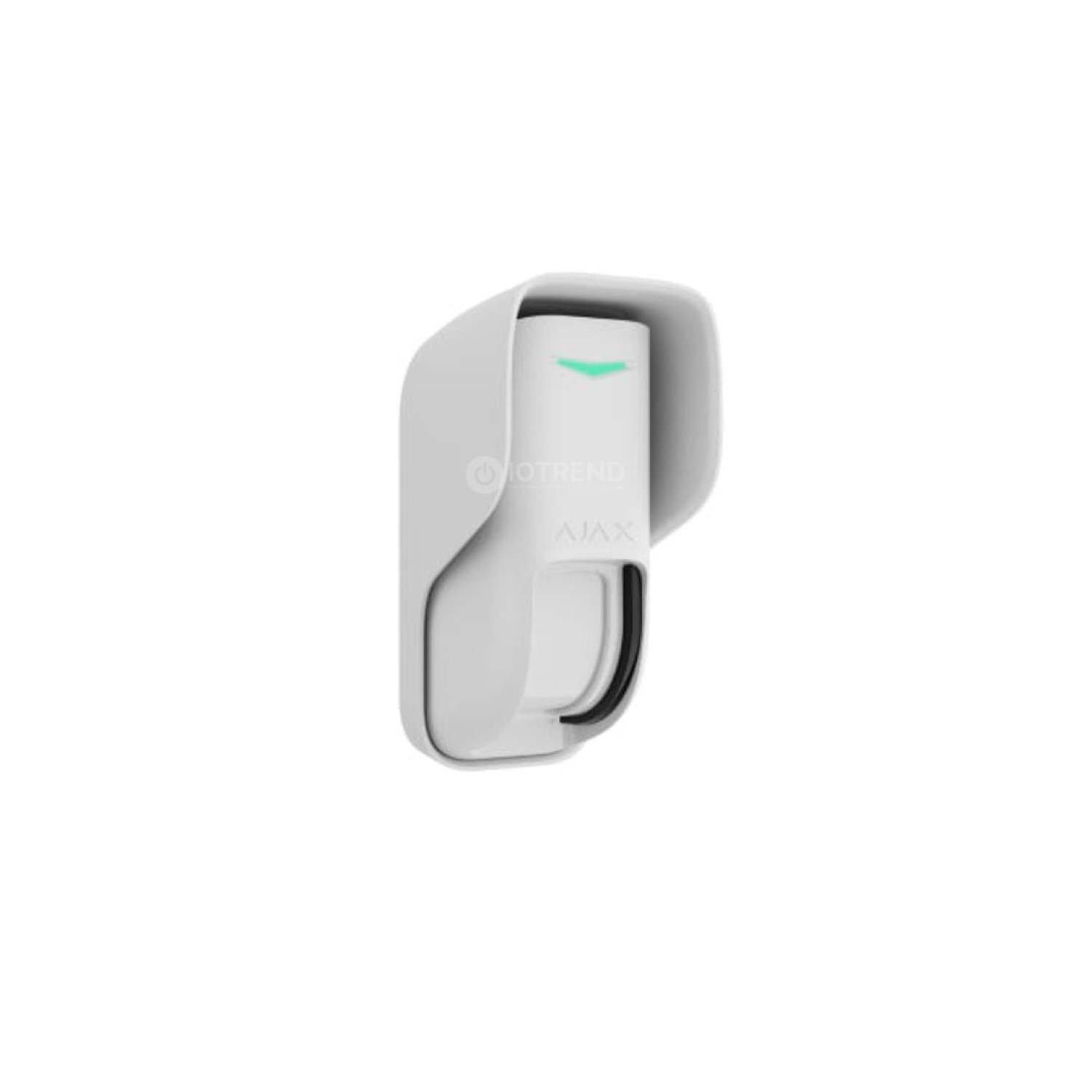

Protect your property's perimeter with the Ajax Curtain Outdoor Jeweller, an advanced wireless curtain-style motion detector designed for precise outdoor intrusion detection. Ideal for securing windows, doors, gates, fences, balconies, and narrow passageways, it creates an invisible detection barrier while allowing free movement inside the protected area.

Featuring dual detection technology, the Curtain Outdoor Jeweller combines two PIR sensors with a built-in K-band microwave sensor to accurately detect human movement while significantly reducing false alarms caused by weather, moving vegetation, insects, or temperature fluctuations. Intelligent signal processing and anti-masking technology provide dependable performance in demanding outdoor environments.

With a detection range of up to 12 metres and a narrow 8 horizontal detection angle, the detector is perfect for perimeter protection without monitoring unnecessary areas. Pet immunity can be configured when installed correctly, helping prevent false alarms from animals up to approximately 1 metre tall.

The Curtain Outdoor Jeweller communicates securely with the Ajax Hub using Jeweller and Wings wireless technologies, delivering encrypted communication with a wireless range of up to 1,700 metres in open space. Pre-installed batteries provide up to 3 years of operation, reducing maintenance requirements.

Key Features Wireless outdoor curtain motion detector Dual PIR and K-band microwave detection Detection range up to 12 metres Narrow 8 horizontal detection angle Advanced anti-masking protection SmartDetect algorithm minimises false alarms Configurable pet immunity Up to 1,700m wireless communication (open space) Jeweller & Wings encrypted communication protocols Up to 3-year battery life Tamper protection against removal or sabotage Suitable for outdoor and indoor installations IP-rated weather-resistant housing Fully compatible with Ajax security systems Ideal Applications Windows Doors Sliding doors Gates Boundary fences Balconies Patios Driveway entrances Commercial premises Residential perimeter protection The Ajax Curtain Outdoor Jeweller delivers professional-grade perimeter security with exceptional accuracy, fast alarm transmission, and industry-leading protection against false alarms, making it an excellent choice for homes and businesses requiring reliable outdoor intrusion detection.

SPECIFICTIONS OF THE AJAX CURTAIN OUTDOOR: Compatibility Compatible only with the following: https://ajax.systems/tools/devices-compatibility/?models=CO.Y.J Type of detector Wireless Installation method Indoors/outdoors Sensors 3 x IR sensor Motion detection distance From 4 to 12 m (depending on settings) for each optical system Protection against false alarms Available (ELSA software algorithm) Alarm signal delivery time 0.15 s Detection angle horizontal: 8vertical: 85/75/15 Time for motion detection From 0.3 to 2 m/s Sensitivity Adjustable, 3 levels Pet Immunity Height up to 100 cm Power supply 2 x CR123 batteries, 3 V Battery life Up to 4 years Temperature sensor Available Communication range with the central unit Up to1,700 m line-of-sight Two-way communication between devices Yes Operating frequencies 866.0866.5 MHz868.0868.6 MHz868.7869.2 MHz905.0926.5 MHz915.85926.5 MHz921.0922.0 MHz Depends on the sales region.

Self-adjusting RF output power Up to 20 mW Block encryption based on AES algorithm Yes Detector polling period 12300 s Frequency hopping Yes Operating temperature range From 25 to +60 Permissible humidity Up to 95% Protection class IP54 Protection against forgery Yes Jamming detection Yes Tamper-resistant Yes Product Dimensions with Hood 155mm* 77mm * 85 mm Product Weight 299g Packaging Dimensions 200mm * 90mm * 100 mm Mass of unit packed 320g Warranty 24 months limited Manufacturers warranty.

The warranty does not cover batteries. Recommendations It is recommended to install the detector at a height of: 2.4 m; 1 mwhen thePet immunemode is enabled. The device is designed for indoor and outdoor use. Install the hood to protect the detectors anti-masking system fro
