| Brand | Ubiquiti |
| Manufacturer | Ubiquiti Networks |
| Model Number | E7-CAMPUS |

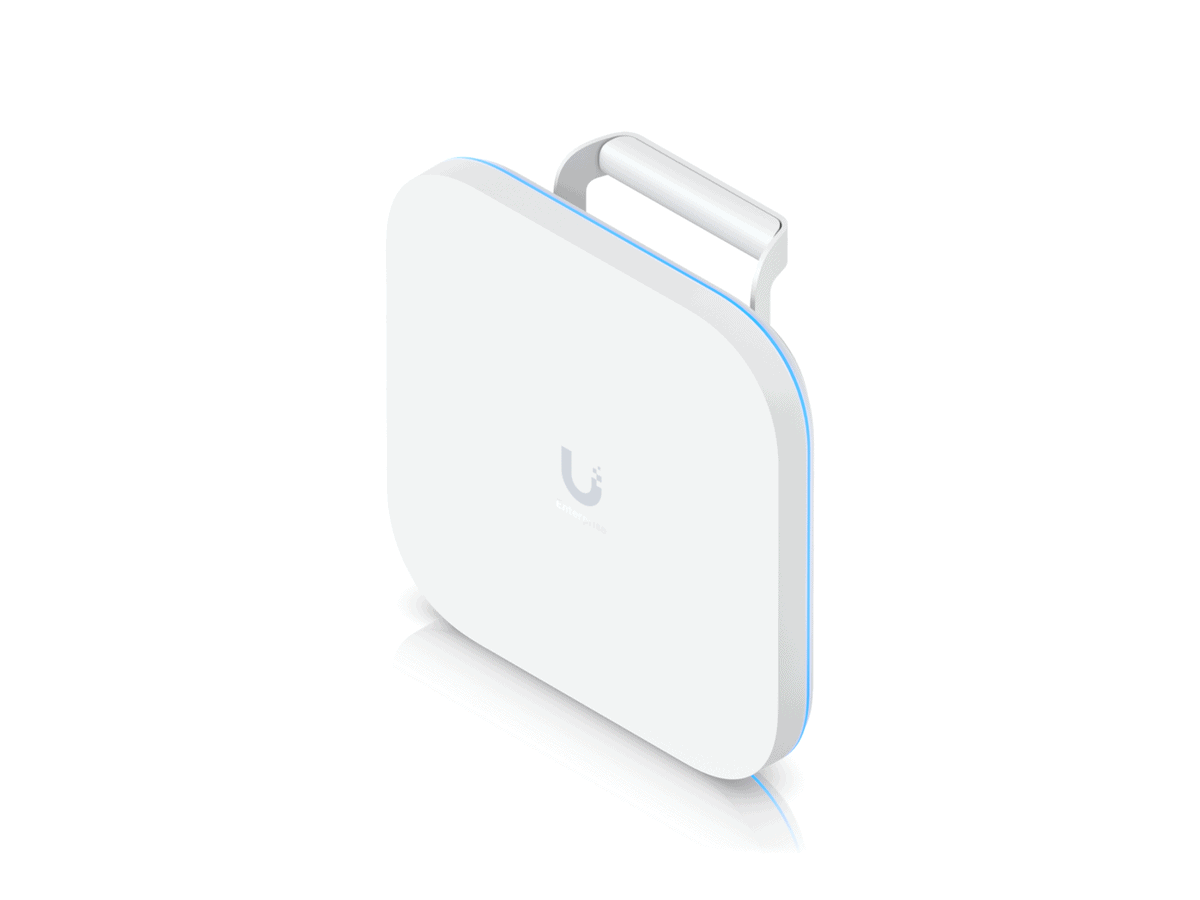

Ubiquiti UniFi Enterprise Wi-Fi 7 Campus IP67 Tri-Band Wireless Access Point E7-Campus Enterprise-grade indoor/outdoor access point with 10-stream tri-band WiFi 7 performance, PRISM active RF filtering technology, integrated directional antennas, a 10 GbE uplink, and a redundant GbE port for high availability.
Technical Specifications: Physical Characteristics Dimensions: Device: 250 * 250 * 45.5 mm Articulating Mount: *104 * 149.4 mm Weight: Device: 2.2 kg With Articulating Mount: 3.1 kg Coverage Area: 465 m (5,000 ft) Max. Client Count: 1000+ Weatherproofing: IPX6, IP67 with Waterproof Door Kit Included Wind Loading: 164.75 N at 200 km/h (37 lbf at 125 mph) Pole Mount Diameter: 2563.5 mm (12.5") Wireless WiFi Standard: WiFi 7 Spatial Streams: 10 MIMO: 6 GHz: 4 * 4 (DL/UL MU-MIMO) 5 GHz: 4 * 4 (DL/UL MU-MIMO) 2.4 GHz: 2 * 2 (DL/UL MU-MIMO) Max.
Data Rate: 6 GHz: 11.5 Gbps (BW320) 5 GHz: 8.6 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) Antenna Gain: 6 GHz: Directional Internal, 12 dBi, 90 * 50 5 GHz: Directional Internal, 12 dBi, 100 * 55 2.4 GHz: Directional Internal, 9 dBi, 90 * 80 Max. TX Power: 6 GHz: 30 dBm (36 dBm EIRP) 5 GHz: 30 dBm 2.4 GHz: 23 dBm Max.
BSSIDs: 8 Per Radio Supported Data Rates: 802.11be (WiFi 7): 7.3 Mbps to 11.4 Gbps (MCS0 - MCS13, NSS1/2/3/4, EHT 20/40/80/160/240/320) 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11, NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9, NSS1/2/3/4, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT20/40) Operating Frequency: US/CA: 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz, U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz, Worldwide: 2400 - 2483.5 MHz, 5150 - 5850 MHz, 5925 - 7125 MHz Features Wireless Meshing: Yes Band Steering: Yes 802.11v BSS Transition Management: Yes 802.11r Fast Roaming: Yes 802.11k Radio Resource Management (RRM): Yes Zero-Wait DFS: Yes Advanced Radio Management: Yes Real-Time Spectral Analysis: Yes Passpoint (Hotspot 2.0): Yes Captive Hotspot Portal: Custom Branding Landing Page: Yes Voucher Authentication: Yes Payment-Based Authentication: Yes External Portal Server Support: Yes Password Authentication: Yes Guest Network Isolation: Yes Private Pre-Shared Key (PPSK): Yes WiFi Speed Limiting: Yes Client Device Isolation: Yes WiFi Schedules: Yes RADIUS over TLS (RadSec): Yes Dynamic RADIUS-Assigned VLAN: Yes Hardware Uplink: 10 GbE, 1 GbE Networking Interface: 1 * 10 GbE RJ45 Port 1 * GbE RJ45 Port PRISM RF Filtering: Yes Antennas: 1 * Internal Antenna with Directional Patterns Antenna Beamwidth: 6 GHz: 90 * 50 5 GHz: 100 * 55 2.4 GHz: 90 * 80 Management: Ethernet LEDs: System (R/G/B) Power Power Method: PoE++ Supported Voltage Range: 42.557 V DC Max.
Power Consumption: 44 W Construction Enclosure Material: UV-Stabilized Polycarbonate, Aluminum Alloy Mount Material: Stainless Steel, Aluminum Alloy Environmental Ambient Operating Temperature: -30C to 60C Ambient Operating Humidity: 5% to 95% RH, Non-Condensing Software Application Requirements: UniFi Network Version 9.0.114 and Later Mobile App: iOS Version 10.20.0 and Later Android Version 10.21.3 and Later Compliance and Certifications NDAA Compliant: Yes Certifications: FCC, IC What's in the Box: Device Articulating Mount Waterproof Door Kit Mounting Hardware for Wall and Pole Installation
