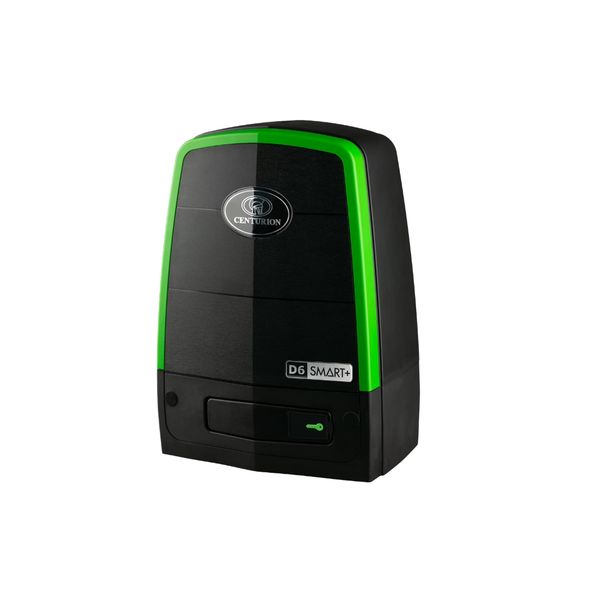

Centurion D6 Smart+ Gate Motor Only New Launch

D6 SMRT+ The D6 SMRT+ is the flagship premium-speed sliding gate operator in the SMRT+ range, engineered for residential estates and light-industrial sites requiring fast access, dependable uptime and full system visibility. It combines high-speed performance with strong pulling force, advanced diagnostics and connected control giving installers a powerful yet intelligent platform to work with.

Application:Residential/Light-Industrial What Sets theD6 SMRT+ Apart? Access Automation in Your Hands Get MyCentsys Remote App Take control of your gate and garage door motordirectly from your smartphonewithMyCentsys Remotea secure, user-friendly app designed for ultimate convenience. More info The Centurion D6 SMART+ Sliding Gate Motor Kit includes: 1 x Centurion D6 Smart+ Motor FEATURES OF THE D6 SMART+ MOTOR: Gate capabilityRated for sliding gates up to 600 kg and 100 m in length.

Gate speed (load dependent)Up to 35 m/min @ 17 kgf, delivering strong and consistent drive performance. 17-tooth steel pinionOptimised for steel rack installations, ensuring reliable engagement and long-term durability. Daily duty cycleEngineered for up to 150 operations per day. Motor voltage configurationPowered by a dual 12 V 7 Ah battery-driven system.

Wireless communicationIntegrated BLE and Wi-Fi connectivity for streamlined setup, configuration and remote diagnostics. Accessory integrationSix available inputs/outputs for flexible system expansion. Receiver capacityOnboard receiver supports up to 1 500 remotes, accommodating larger user bases without additional modules.

ACCESSORIES FOR CENTURION D6 SMART+ SLIDING GATE MOTOR (OPTIONAL EXTRA) Batteries: 2 x 12V 8AH Gel Battery Steel Rack, Nylon Angle Rack Centurion Photon SMART Fully Wireless Gate Beam Set Centurion G-Speak Ultra GSM Intercom Ultra 4G Kit Centurion SmartGuard Air Wireless Keypad Centurion Loop Detector 1 Channel (Flux SA) Centurion Nova 1 Button, 2 Button and 4 Button Remotes Centurion D6 SMART Anti-Theft Bracket Gooseneck Gate wheels, 80mm V Profile, 80mm U Profile, 100mm V Profile, GateshoX 80mm Gate Mate Sliding Gate Brush Kit G-Ultra GSM Solution Clearline Gate Motor Lighting and Surge Protector SPECIFICATIONS OF THE D6 SMART+ MOTOR: Input voltage(1) 110V - 240V AC 50/60Hz Current consumption (mains) 430mA peak Dx12V Battery charger current output 1.3A @ 27.6V +/- 5% (38W) Maximum number of operations per day 150 Duty cycle - Mains present (2,3) 50% Motor power supply Battery-driven (Standard Capacity - 2x12V 7ah) Current consumption (motor at rated load) 13A Fuse Protection Type | Rating Main Control Card 35A Mini ATO Aux.

Supply Resettable Fuse | 24V 3A Charger (Mains Supply) Non-serviceable | 3A slow-blow Motor push force starting 30kgf Motor push force rated 17kgf (Max) Gate mass maximum 600kg Gate speed (varies with load) (4) Maximum: Up to 35m/min Rated: Up to 30m/min Manual Override Lockable with key release Operations whilst in Battery backup mode with 7.2Ah Battery Operating Mode Up to 15m/min 7kgf | Up to 30m/min 17kgf Half day (5,6,8) 209 | 70 Full day (5,6,8) 183 | 59 Collision Sensing Electronic Operating temperature range -15C to +50C Onboard receiver type Code-hopping multichannel receiver with selective add and delete Receiver code storage capacity 1500 Remotes Receiver frequency 433.92MHz Degree of protection IP55 Packaging Dimensions 325mm(w) x 244mm(d) x 435mm(h) Mass of unit packed 9000g Warranty 24 months limited Manufacturers warranty (excludes battery) 1.

Can operate off a solar supply, consult your local dealer for assistance.2. Based on 25C ambient temperature and unit not in direct sunlight.3. Based on a motor push force of less than 50% of rated (Starting and Running forces).4. Gate opening and closing speeds can be configured to run slower depending on therequirements of individual installations.5.

Can increase battery capacity for longer standby times.6. Based on 4m gate, excluding all accessories.7. Multiple buttons per remote can be used.8. Dependent on push force. Warnings and Limitations on the Centurion D6 Smart+ Motor: 1. All installat
