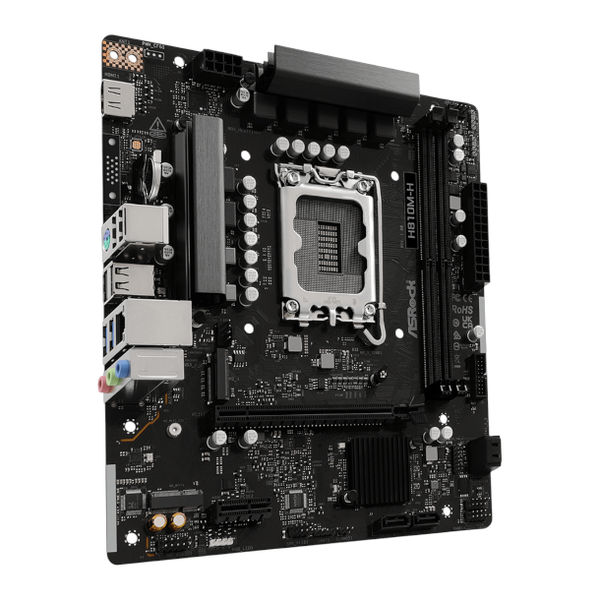

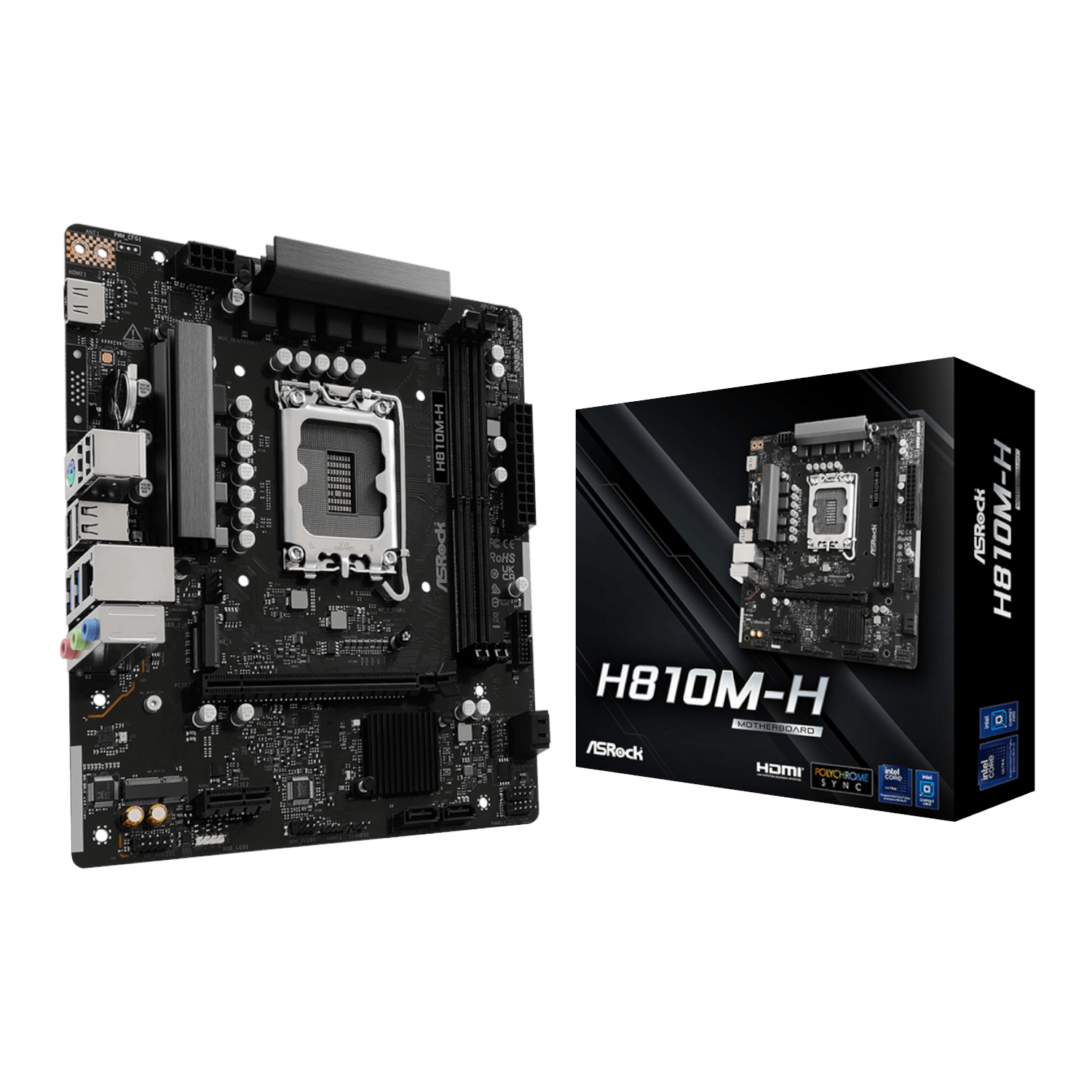

ASRock H810M-H Intel LGA1851 Micro Atx Motherboard - Black

Features

Description

Quick Specs Supports Intel LGA1851 processors for cutting-edge performance. Utilises a Micro ATX form factor, balancing size and expandability. Equipped with HDMI for high-definition display output. Supports up to 128GB of system memory for demanding applications. Features high-definition audio jacks for crisp, clear sound.

Harness the Power of Intel's Latest CPUs with an ASRock Motherboard The ASRock H810M-H micro ATX motherboard is engineered to support the newest Intel LGA1851 processors, providing a robust foundation for your next PC build. Designed for both gamers and professionals, this ASRock motherboard ensures seamless performance and reliability, allowing you to tackle demanding tasks with ease.

Compact Micro ATX Form Factor With its Micro ATX form factor, the ASRock H810M-H strikes the perfect balance between size and functionality. Ideal for smaller cases, this micro ATX motherboard doesn't compromise on features, offering ample connectivity and expansion options for a versatile computing experience.

Immersive Visual Experience with HDMI Featuring an HDMI output, the ASRock H810M-H delivers stunning visuals for gaming, streaming, and content creation. Enjoy high-definition clarity and vibrant colours, bringing your entertainment and work to life on compatible displays. Unleash Multitasking with 128GB Memory Support Supporting up to 128GB of system memory, this ASRock motherboard enables you to run multiple applications simultaneously without lag.

Whether you're editing videos, playing the latest games, or working on complex projects, the ASRock H810M-H ensures smooth and responsive performance. High-Definition Audio for Crystal-Clear Sound Equipped with high-definition audio jacks, including Line in, Front Speaker, and Microphone ports, the ASRock H810M-H provides an immersive audio experience.

Enjoy clear and crisp sound for gaming, music, and video conferencing, enhancing your overall computing experience. FEATURES: Supports Intel Core Ultra Processors (Series 2) (LGA1851) 6+1+1+1+1 Power Phase 2 x DDR5 DIMMs Supports Dual Channel, up to 6400 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: 1 HDMI Realtek ALC897 7.1 CH HD Audio Codec 4 SATA3 1 Hyper M.2 (PCIe Gen4x4) 4 USB 3.2 Gen1 (2 Rear, 2 Front) 6 USB 2.0 (4 Rear, 2 Front) Realtek Gigabit LAN SPECIFICATIONS: CPU Supports Intel Core Ultra Processors (Series 2) (LGA1851) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration Chipset: Intel H810 Memory Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 6400* Supports Clocked Unbuffered DIMM (CUDIMM) Max. capacity of system memory: 128GB* Supports Intel Extreme Memory Profile (XMP) 3.0x* * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS.

For Windows 64-bit OS with 64-bit CPU, there is no such limitation. BIOS 256Mb AMI UEFI Legal BIOS with GUI support Graphics Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) LAN Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Expansion Slots CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 4.0 x1 Slot (PCIE2)* 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module *Supports NVMe SSD as boot disks Storage Chipset: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks USB Chipset: 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6 x USB 2.0 (4 Rear, 2 Front) * All USB ports support ESD Protection Connector 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Heade
