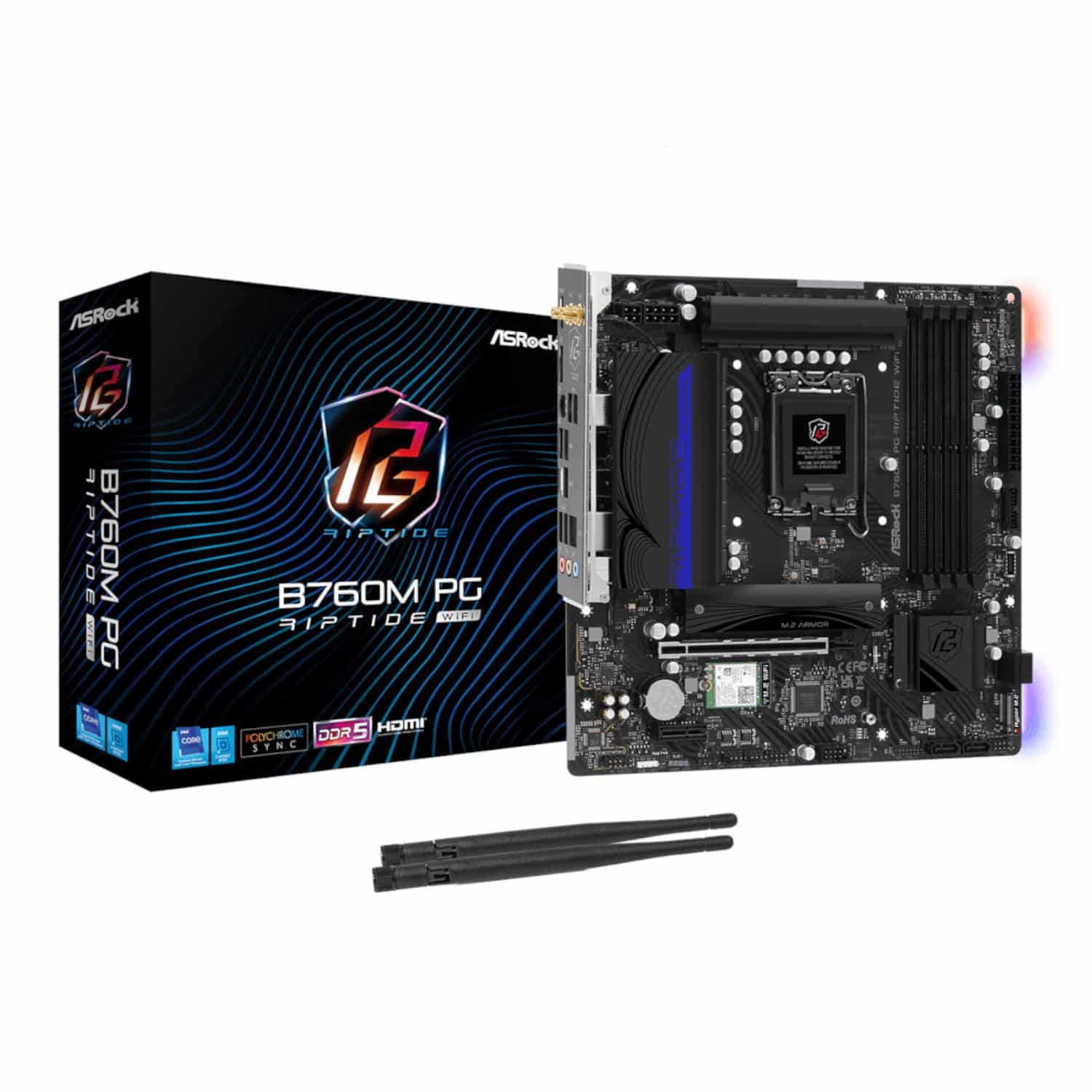

ASRock B760M Pg Riptide Wi-fi Intel LGA1700 Micro-atx Motherboard

The ASRock B760M PG Riptide Wi-Fi is engineered for gamers and power users who demand stability, speed, and uncompromised reliability. Inspired by the strength of ocean currents, this Micro-ATX motherboard delivers powerful performance with support for 14th, 13th, and 12th Gen Intel Core processors on the LGA1700 socket.

Built with low-loss PCB materials and designed for overclocking, it unlocks the full potential of DDR5 memory with speeds of up to 7200+ MHz (OC) via Intel XMP 3.0. The onboard Trouble-Free Protection Circuit for DDR5 ensures safer installation and removal of memory modules, reducing the risk of damage during upgrades.

Equipped with PCIe 4.0 for both GPU and M.2 storage, the B760M PG Riptide Wi-Fi delivers lightning-fast data transfer speeds for gaming and productivity. Dual Hyper M.2 Gen4x4 slots offer high-speed NVMe SSD support, while four SATA3 ports provide ample space for additional storage. The integrated Dragon 2.5G LAN ensures ultra-low latency for competitive gaming, while Wi-Fi 6E with Bluetooth 5.3 keeps you connected wirelessly at high speeds across 2.4GHz, 5GHz, and 6GHz bands.

A front USB 3.2 Gen1 Type-C header provides up to 5Gbps transfer speeds with modern peripherals. Experience rich, detailed sound with the Realtek ALC897 7.1 CH HD Audio Codec and Nahimic Audio enhancements, perfect for gaming, streaming, and content creation. The integrated RGB lighting can be customized via Polychrome RGB Sync, with additional ARGB and RGB headers allowing you to connect LED strips, cooling fans, and other illuminated hardware for a fully personalized build.

Whether you prefer a subtle glow or a vibrant RGB showcase, the B760M PG Riptide Wi-Fi gives you complete control over your systems aesthetic. With its micro-ATX form factor, this motherboard is ideal for compact builds without sacrificing expansion capabilities. The reinforced PCIe slot, Auto Driver Installer, and advanced fan control make setup and maintenance simple, while the high-quality components ensure long-term durability.

From smooth multitasking to ultra-fast gaming loads, the ASRock B760M PG Riptide Wi-Fi delivers the perfect blend of stability, speed, and modern features for your next PC build. FEATURES: Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) 4 x DDR5 DIMMs supports dual channel, up to 7200+ (OC) 1 PCIe 4.0 x16, 1 PCIe 4.0 x1 Graphics Output Options: HDMI, DisplayPort Dragon 2.5G LAN +Killer 802.11ax (Wi-Fi 6E) + Bluetooth 5.3 Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4) 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front) 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front) 6 USB 2.0 (4 Rear, 2 Front) Supports ASRock Auto Driver Installer SPECIFICATIONS: CPU & Chipset Socket: Intel LGA1700 Supported CPUs: 14th, 13th Gen & 12th Gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT) Supports ASRock Hyper BCLK Engine Chipset: Intel B760 Memory Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* Max. capacity of system memory: 256GB Supports Intel Extreme Memory Profile (XMP) 3.0 Graphics Output Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz Expansion Slots CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 4.0 x1 Slot (PCIE2)* 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel CNVio/CNVio2 (Integrated Wi-Fi/BT) Storage CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64Gb/s) mode* 4 x SATA3 6.0 Gb/s Connectors Networking LAN: Realtek Dragon RTL8125BG Wireless: Wi-Fi 6E (802.11axe) with Bluetooth 5.3 Dual-band 2*2 support with 6GHz band USB Ports
