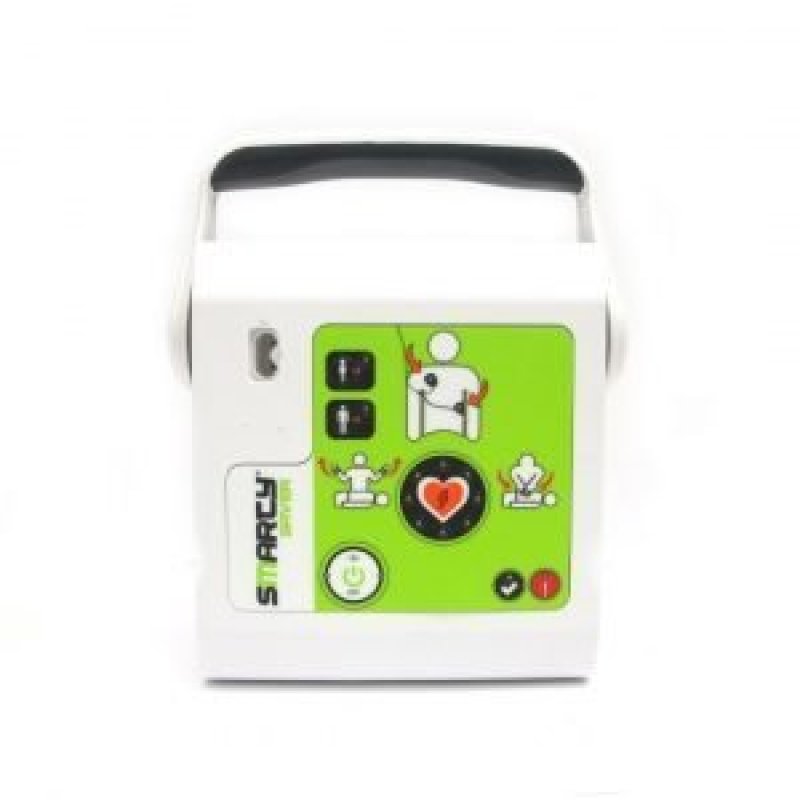

Aed Saver Smarty

AED Saver Smarty Description: The Smarty Saver Is Very Affordable And Easy To Use. Reliable and Durable, It Can Be Easily Operated By Anyone DEFIBRILLATOR Model: Code SM1-B1001: Semi-Automatic Code SM2-B1002: Fully Automatic Maximal energy: 200J (nominal) Waveform: Biphasic truncated exponential (BTE) automatically adapts according to patients impedance.

Discharge protocol: Adult: incremental first shock 150J subsequent 200J Paediatric: fixed 50J. Charging time from shock alert*: IEC60601-2-4 9 sec with shock at 150J 12 sec with shock at 200J Analysis time: IEC/EN 60601-2-4 from 4 to 15 seconds Impedance range: 20-200 Ohms Sensitivity: 97% (IEC/EN 60601-2-4) Specificity: 99% (IEC/EN 60601-2-4) Controls: Semi-automatic model 4 buttons: ON/OFF, shock delivery, patient selection (adult/child) Fully Automatic model 3 buttons: ON/OFF, patient selection (adult/child) Light indicators: Device status: 2 LEDs red /green PADs placement: 2 red LEDs Do not touch the patient: 2 red LEDs Touch the patient: 1 green LED Adult patient: 1 green LED Paediatric patient: 1 green LED ON/OFF button: 2 green LEDs Shock button: 8 red LEDs Upgradeable: Through USB cable External memory card PHYSICAL: Size: 200x213x71mm (folded handle) 257x213x71mm (open handle Weight: 1,56 Kg (with battery and PADs) EVENT RECORDING: Optional external memory: Micro uSD/SDHC card up to 32GB Stored data: AED1LOG.txt: text file with detailed report of the activities of self-test and power-ups AEDFILE.aed: ECG trace, rescue events, voices and background audio AEDFILE.aedreview: Through data manager software Saver View Express Defibrillation Pads: Type:Code SMT-C2001: Disposable , Universal, Pre-Gelled, Preconnected Code SMT-C2002: Disposable, Univeral , Pre-Gelled, Preconnected , Face-to-Face Dimensions: Total surface 136cm; Active Surface 94cm; 120cm Cable Length (External To The Packaging) Shelf Life: 24-30 Months As Indicated On The Packaging .

Battery: Type:Code SMT-C14031: Disposable Battery 8 Cells Li-MnO2 Voltage Capacity:12VDC-3000mAh Atonomy:Up To 200 Complete Rescue Cycles (200J Shocks + CPR); Up To 36 Hours Of Continuous ECG Analysis* Stand By Life:Up To 3 Years With a Battery Insertion Test and Daily Self-Test without Any Turning On The AED* *Performance Refferred To New Batteries Stored At a Temrepture Of 20 C And Relative Humidity 45% Without Condensation.

Environmental Specifications: Operating Tempreture: 0C to 45C (32F to 113F) Storing/Shipping Tempreture:-40C to 70C (-40F to 158F) Humidity:10% to 95% Relative Humidity non condensing. Sealing(IP Protection):IEC/EN 60529: Class IP56 Shock/Drop Abuse Endurance:IEC/EN 60601-1 Clause 21 Electrostatic Discharges:IEC/EN 6100-4-2 Electromagnetic Compatibility:IEC/EN 60601-1-2:2015 Protection From Defibrillation:IEC/EN 60601-1; Device Internally Powered , Type BF Directive 93/42/CEE Classification:Directive 93/42/CEE Amd 2007/47/CE: Class IIB, Annex IX Rule 9
