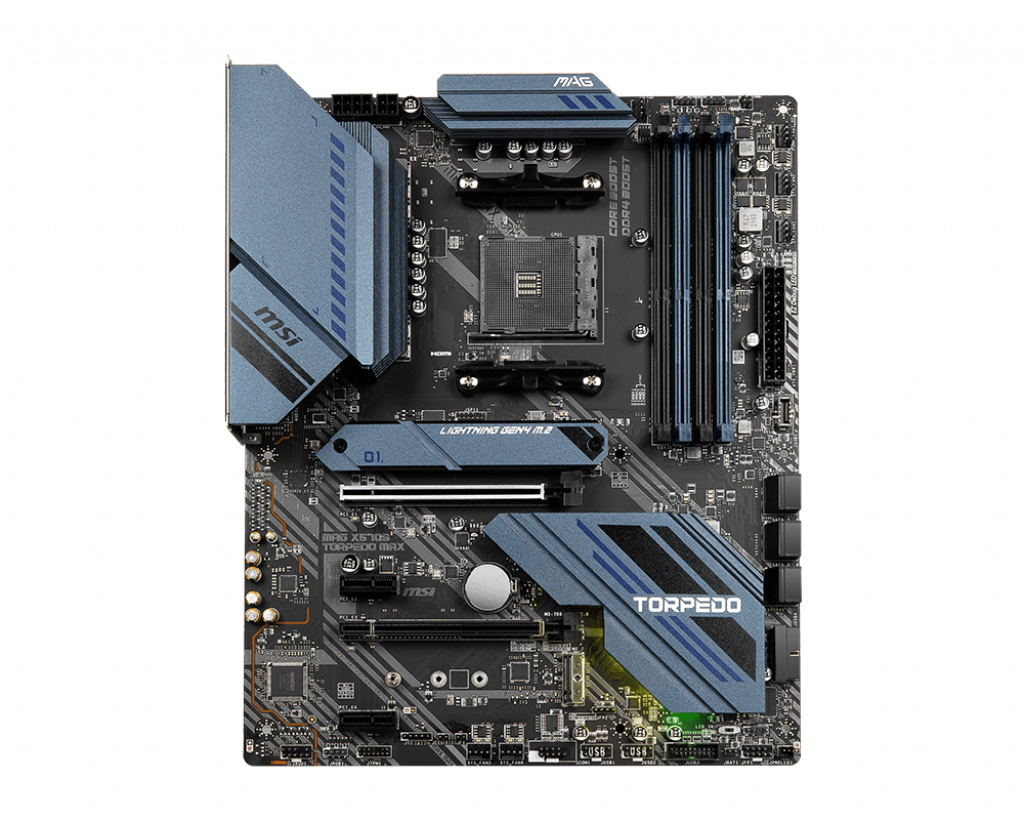

Msi Mag X570S Torpedo Max Amd AM4 Atx Gaming Motherboard

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high-quality components, and developed products for reliability even under extreme conditions. With more cores processors, thermal and power design is more important to make sure the temperature keeps lower.

MSI extended PWM heatsink and enhanced circuit design ensure even high-end AMD CPU to run in full speed with MSI motherboards. High-performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether youre a gamer, prosumer, or PC enthusiast.

Utilizing AMD Ryzen 5000 series processors, MSI X570S motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MAG X570S TORPEDO MAX features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users.

Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency. MSI motherboards are built with a variety of connectors to satisfy gamers.

Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immersive one. FEATURES: Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports DDR4 Memory, up to 5100(OC) MHz Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop works Latest Network Solution: Onboard 2.5G LAN plus GigabitLANwith LAN Manager deliver the best online experience without lag Lightning M.2:Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs AUDIO BOOST 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience Multi-GPU: With Steel armor PCIe slots.

Supports 2-Way AMD Crossfire SPECIFICATIONS: Socket: AM4 CPU (Max Support): Ryzen 9 Chipset: AMD X570 Chipset DDR4 Memory: 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 /4533 / 4600/ 4733/ 4866/ 5000/ 5100 Mhz by JEDEC and A-XMP OC MODE Memory Channel: Dual DIMM Slots: 4 Max Memory (GB): 128 PCI-E x16: 2 PCI-E x1: 2 SATAIII: 6 M.2 Slot: 2 RAID: 0/1/10 LAN: 1x Realtek 8125B 2.5Gbps LAN Controller 1x Realtek RTL8111H 1Gbps LAN Controller USB 3.2 ports (Front): 1(Gen 2, Type C), 4(Gen 1, Type A) USB 3.2 ports (Rear): 3(Gen 2, Type A),1(Gen 2,Type C), 2(Gen 1, Type A) USB 2.0 ports (Front): 4 USB 2.0 ports (Rear): 2 Audio ports (Rear): 5+ Optical S/PDIF (Realtek ALC4080 Codec) HDMI: 1 DirectX: 12 Form Factor: ATX Crossfire: Yes Operating System: Support for Windows 10 64-bit WHATS IN THE BOX: MSI MAG X570S TORPEDO MAX AM4 ATX Motherboard Black x1 SATA cables x2 Standoff Screws/Sets x3 USB Drive x1 MAG Stickers Pack x1 Quick Install Guide x1 User Manual x1
