| Brand | TP-link |
| Manufacturer | TP-link |
| Model Number | NET-TL-FC311A-2 |

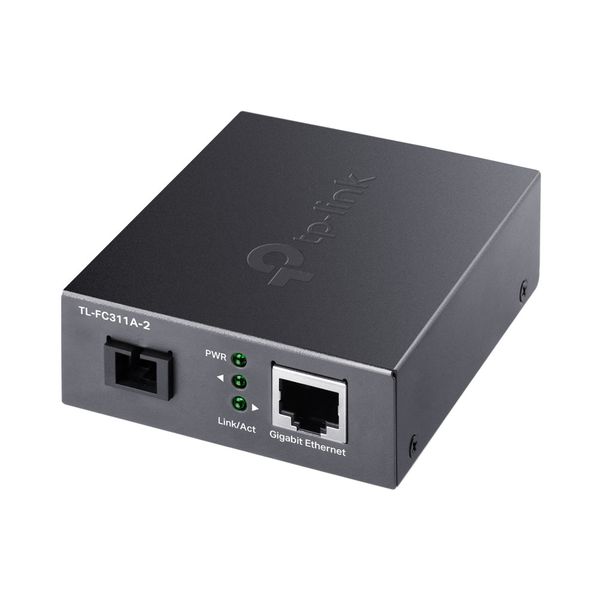

TP-Link Omada TL-FC311A-2 Gigabit WDM Media Converter TL-FC311A-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
Features: 1*10/100/1000Mbps Auto-Negotiation RJ45 portsupportsAuto-MDI/MDIX Auto-negotiation of Half-Duplex/Full-Duplex transfer mode Adopts WDM technology, transmitting and receiving data on one single fiber Extends fiber distance up to 2 km TL-FC311A-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only a single mode fiber, which saves half of the cable deployment cost for customers.
TL-FC311A-2 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-2 is one of the products that can cooperate with TL-FC311A-2.
Other Features Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated. Technical Specifications: Maximum data transfer rate: 1000 Mbit/s Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z Ethernet interface type: Gigabit Ethernet Maximum transfer distance: 2000 m Fiber mode structure: Single-mode Fiber cable diameters supported (core/cladding): 9/125 m LED indicators: Activity, Link, Power Product colour: Black Fiber optic connector: SC Connectivity technology: Wired Output voltage: 5 V Output current: 0.6 A
