4 Port Gigabit Poe Switch + 1 Port

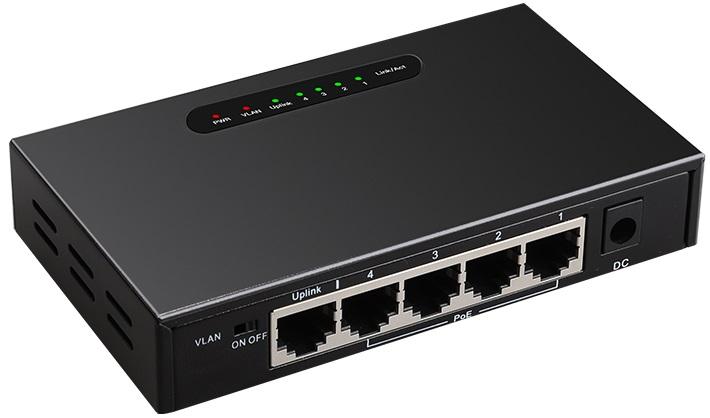

4 PORT 10/100/1000 POE SWITCH - TXE038 5-Port 10/100/1000Mbps Unmanaged PoE Switch(4-Port PoE) Model Name:TXE038 Chipset:MT7530DU+IP804A Standards and Protocols:IEEE802.3, IEEE802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az,IEEE802.1q, IEEE802.3at,IEEE802.3af Interface:5 x 10/100Mbps Auto-Negotiation ports Network Media:10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) Transfer Method:Store-and-Forward MAC Address Table:2K Switching Capacity:10Gbps Packet Forwarding Rate:7.44Mpps PoE Ports(RJ45):4 x PoE ports compliant with 802.3at/af Power Pin Assignment: 1/2(+),3/6(-) PoE Budget:60W Indicators Per Device: Power,VLAN Per Port:Link/Activity Power Supply:DC 52V,1.25A External Power Power Consumption:Maximum(PoE on): 63W (220V/50Hz) Dimensions ( W x D x H ):123 x 70 x 23mm Environment:Operating Temperature: 0?~45?

Storage Temperature: -40?~70? Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing TXE038 is a 5-port 10/100/1000MbpsDesktop PoE Switch provides the seamless network connection These PoE ports can automatically detect and supply power with those IEEE 802.3at compliant Powered Devices (PDs) In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets where you wish to fix devices such as APs, IP Cameras or IP Phones, etc VLAN isolation to meet security monitoring requirements Independent uplink port can ensure that the port can easily cope with sudden high traffic, and ensure that the upstream channel is unobstructed TXE038is easy to install and use It requires no configuration and installation With desktop design, outstanding performance and quality The 5-port 10/100/1000Mbps Desktop PoE Switch is a great selection for expanding your home or office network
