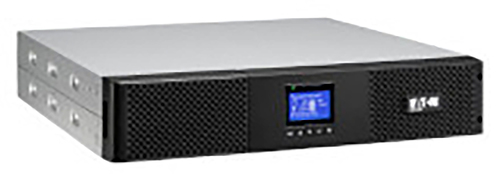

Eaton 9SX 3000I Rack 2U

Eaton 9SX UPS, 3000 VA, 2700 W, Input: C20, Outputs: (8) C13, (1) C19, Rack, 2U GENERAL SPECIFICATIONS PRODUCT NAME Eaton 9SX UPS CATALOG NUMBER 9SX3000IR PRODUCT LENGTH/DEPTH 43.8 cm PRODUCT HEIGHT 8.65 cm PRODUCT WIDTH 60.8 cm PRODUCT WEIGHT 26.5 kg WARRANTY 2 year COMPLIANCES CE Marked TUV cULus Listed CSA 22.2 FCC part 15 Class B CISPR22 Class B CERTIFICATIONS IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 CE cULus Listed EAC UPC 743172091147 MODEL CODE Eaton 9SX 3000i Rack2U PRODUCT SPECIFICATIONS SECONDARY FREQUENCY - MAX 60 Hz OUTPUT WAVEFORM Sine wave MAX NUMBER OF BATTERY PACKS 4 WATTAGE 2700 W OUTPUT POWER FACTOR 0.9 FORM FACTOR Rack VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX 3 INCLUDES NETWORK CARD No INPUT CONNECTION C14 INPUT VOLTAGE - MIN 140 V OUTPUT VOLTAGE - MAX 240 V SECONDARY FREQUENCY - MIN 50 Hz SOFTWARE COMPATIBILITY Eaton Intelligent Power Manager, Eaton Intelligent Power Protector BATTERY REPLACEMENT Hot-swappable internal batteries and extended battery modules (EBMs) BATTERY TYPE Sealed, lead-acid EFFICIENCY 92 SPECIAL FEATURES Double conversion topology Constantly monitors power conditions and regulates voltage and frequency Provides more real power (watts) to protect more equipment with a 0.9 power factor Internal bypass allows service continuity in case of UPS fault Next-generation graphical LCD display Meter energy consumption (at the UPS level) Hot swappable batteries Advanced Battery Management (ABM) technology to increase battery lifetime Long backup time with up to 4 optional EBM Cable locking system CONSTRUCTION TYPE 482.6 mm (19 inch) device OUTPUT VOLTAGE - MIN 200 V COLOR Black EXTENDED BATTERY CAPABILITY Yes OUTPUT VOLTAGE RANGE 200/208/220/230/240 V +/- 2% TOPOLOGY Online/Double-conversion BTU RATING Online: 818 EFFICIENCY (ECO-MODE) 97.5 BACK-UP TIME 3 min INPUT NOMINAL VOLTAGE 230V default (200/208/220/230/240/250V) INPUT POWER FACTOR >.99 INPUT FREQUENCY RANGE 40-70 Hz INTERNAL BYPASS Yes INPUT VOLTAGE - MAX 276 V VOLTAGE TYPE AC PHASE (OUTPUT) 1 BATTERY MANAGEMENT ABM & Temperature compensated charging method (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units AUTO SHUTDOWN FUNCTION Yes NUMBER OF OUTPUTS C13 8 NUMBER OF OUTPUTS C19 1 VA RATING 3000 VA POTENTIAL FREE SWITCH CONTACT Yes RECEPTACLE (8) C13, (1) C19 PHASE (INPUT) 1 PACKAGE CONTENTS UPS Input cable (2) IEC-IEC output cables USB cable Serial cable (2) brackets for 19 mounting (2) Rack-mounting kit Safety instructions Quickstart guide NOISE LEVEL
