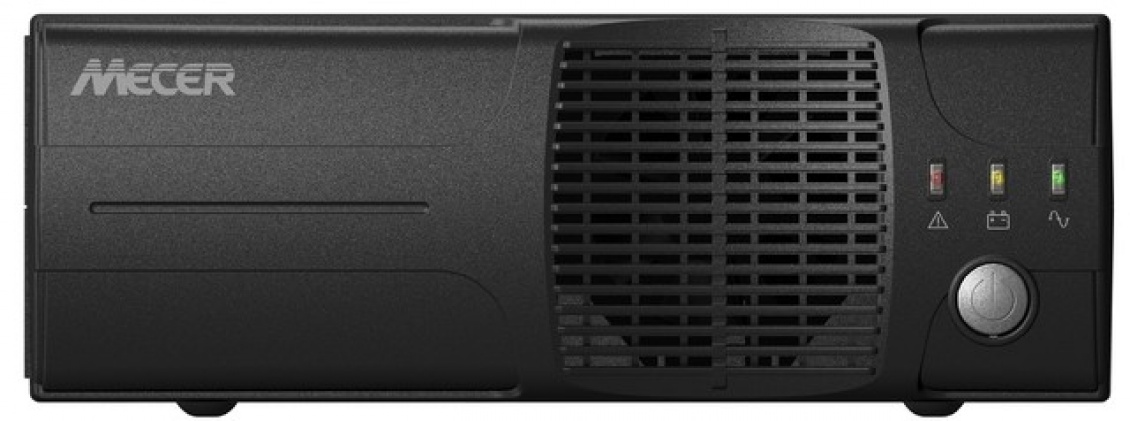

Mecer 1200VA 720W Inverter Battery Charger Ups

Mecer 1200VA, 720W, 24V DC-AC Inverter Cables to connect the unit to a battery are included. A 220V power cable is included to recharge the battery while the power is on. May be used as an inverter (to power 220V devices such as TVs from a battery) or a UPS (runs the device from the standard 220V power while the battery charges) EXTERNAL BATTERY REQUIRED: Specifications: - MODEL IVR-1200BK - CAPACITY 1200 VA / 720 W INPUT: - Voltage 220/230/240 VAC - Acceptable Voltage Range 90-140 VAC or 162-290 VAC (UPS mode) - 90-280 VAC (INV.

Mode) - Frequency Range 60Hz or 50 Hz (auto sensing) OUTPUT: - AC Voltage Regulation (Batt. Mode) 10% - Frequency Range (Batt. Mode) 60 Hz 1 Hz or 50 Hz 1 Hz - Transfer Time 10 ms typical - Waveform (Batt. Mode) Simulated Sine Wave BATTERY: - Battery Voltage 12 VDC - Floating Charge Voltage 13.7 VDC 2% - Low Battery Alarm Voltage 10.2VDC 2% - Shutdown Voltage 9.9VDC 2% - Overcharge Protection 15.0 VDC 2% - Maximum Charge Current 10 A or 20 A PROTECTION - Full Protection Overload, and short circuit protection INDICATORS: - Line Mode Green lighting - Battery Mode Yellow lighting - Low Battery Yellow flashing every 2 seconds - Shutdown Mode Yellow flashing every 5 seconds - Charging Mode at Power On Green flashing every 2 seconds - Charging Mode at Power Off Green flashing every 5 seconds - Overload Red flashing for 0.5 sec. every second - Overcharging Red flashing every 5 seconds - Fault Red lighting ALARM: - Low Battery Sounding every 2 seconds - Overload Sounding every 0.5 second - Overcharging Continuously sounding for 30 minutes, then shutdown - Fault Continuously sounding for 30 minutes, then shutdown PHYSICAL: - Dimension, D X W x H (mm) 293mm x 231.5mm x 82.5mm - Net Weight (kgs) 2.35 OPERATING ENVIRONMENT - Humidity 0 to 90% Relative Humidity(Non-condensing) - Operating Temperature 0 0C to 40 0C - Storage Temperature -15 0C to 50 0C
