Centurion D5 Evo Smart+ Kit With Angle Nylon Rack New Launch

The Centurion D5 Evo SMART+Sliding Gate Motor Kit with Angle Nylon Rack combines sleek design and premium performance with intelligent features, making secure and reliable gate automation accessible to everyone. The D5 Evo SMART+ sliding gate motor is packed with advanced yet intuitive and user-friendly functionality to make your life easier with wifi and bluetooth Effortlessly control your gate with the MyCentsys Remote smartphone app, receive advanced diagnostic feedback for ultimate peace of mind, and enjoy dependable battery-driven technology that stands up to power outages.

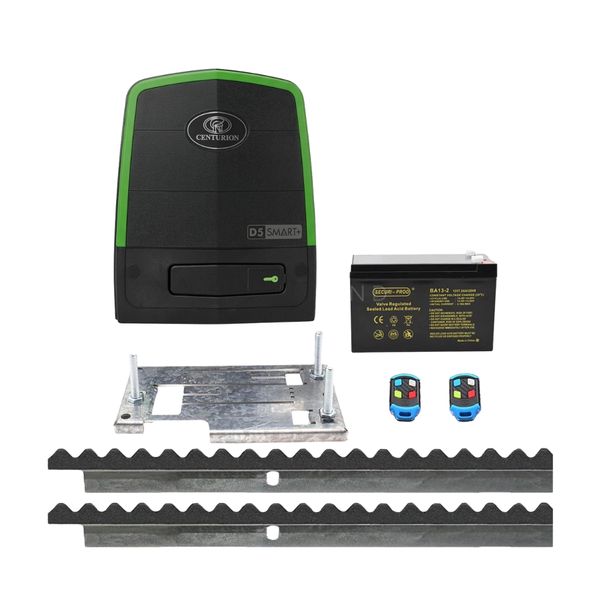

The D5 Evo SMART+ sliding gate motor is suitable for gates with a maximum weight of 500kg. The Centurion D5 Evo SMART+ Sliding Gate Motor Kit with Angle Nylon Rack Includes: 1 x Centurion D5 Evo Smart+ Motor 1 x Baseplate 1 x Securi-Prod 12V 7.2AH SLA Battery 2 x Centurion Nova 4 Button Remotes 2 x 2m Galvanised Nylon Rack (4 meters) FEATURES OF THE D5 EVO SMART+ MOTOR: Seamless Control: Manage your gate with maximum convenience, control and flexibility with the user-friendly smartphone app Intelligent Insights: Advanced notifications, alarms, monitoring and reporting keep you informed and in control Uninterrupted Security and Convenience: Dependable battery-driven technology ensures seamless operation even during power outages Effortless Setup: Wireless configuration and smartphone control make installation a breeze Enhanced Security: The improved theft-resistant cage and advanced position control system offer unparalleled peace of mind Ultimate Versatility: Individually configurable inputs and outputs allow for harmonious integration with your SMART ecosystem ACCESSORIES FOR CENTURION D5 EVO SMART+ GATE MOTOR (OPTIONAL EXTRA) Batteries:1 x 12V 8AH Gel Battery Nylon Raz Rack, Steel Rack Centurion Photon SMART Fully Wireless Gate Beam Set Centurion G-Speak Ultra GSM Intercom Ultra 4G Kit Centurion SmartGuard Air Wireless Keypad Centurion Loop Detector 1 Channel Centurion Nova 1 Button, 2 Button and 4 Button Remotes Centurion D5 Evo SMART Anti-Theft Bracket Gooseneck Gate wheels, 80mm V Profile, 80mm U Profile, 100mm V Profile, GateshoX 80mm Gate Mate Sliding Gate Brush Kit G-Ultra GSM Solution Clearline Gate Motor Lighting and Surge Protector SPECIFICATIONS OF THE D5 EVO SMART+ MOTOR: Input voltage (1) 110V - 240V AC 50/60Hz (1) Current consumption (mains) 320mA peak Dx12V Battery charger current output 1.8A @ 14.3V +/- 5% (28W) Maximum number of operations per day 150 (3,6) Duty cycle - Mains present (2,3) 50% Motor power supply Battery-driven (Standard Capacity - 1x12V) Current consumption (motor at rated load) 15A Input / Output sink currents (Max. accessory current draw) I/O 4 and I/O 5: 100mA (12V) O6: 3A (12V) 10sec Pulse Fuse Protection Type | Rating Main Control Card Serviceable | 35A Aux.

Supply Resettable Fuse | 12V 600mA (10sec Pulse) Charger (Mains Supply) Non-serviceable | 3A slow-blow Motor push force starting 30kgf Motor push force rated 17kgf Gate mass maximum 500kg Gate length maximum 20m Gate speed (varies with load) (4) Maximum: Up to 24m/min Rated: Up to 19m/min Manual Override Lockable with key release Operations whilst in Battery backup mode with 7.2Ah Battery Operating Modes Up to 24m/min 7kgf | Up to 18m/min 17kgf Half day (5,6,8) 90 | 44 Full day (5,6,8) 70 | 35 Collision Sensing Electronic Onboard receiver type Code-hopping multichannel receiver with selective add and delete Receiver code storage capacity 1500 Remotes (7) Receiver frequency 433.92MHz Degree of protection IP55 Packaging Dimensions 2000 mm (L) x 280 mm (W) x 500 mm (H) Mass of unit packed 14750g Warranty 24 months limited Manufacturers warranty (excludes battery) Additional information pertaining to the D5 Evo Smart+ motor specifications:1.

Can operate off a solar supply2. Based on 25C ambient temperature and unit not in direct sunlight3. Based on a motor push force of less than 50% of rated (Starting and Running forces)4. Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations5.

Ca
