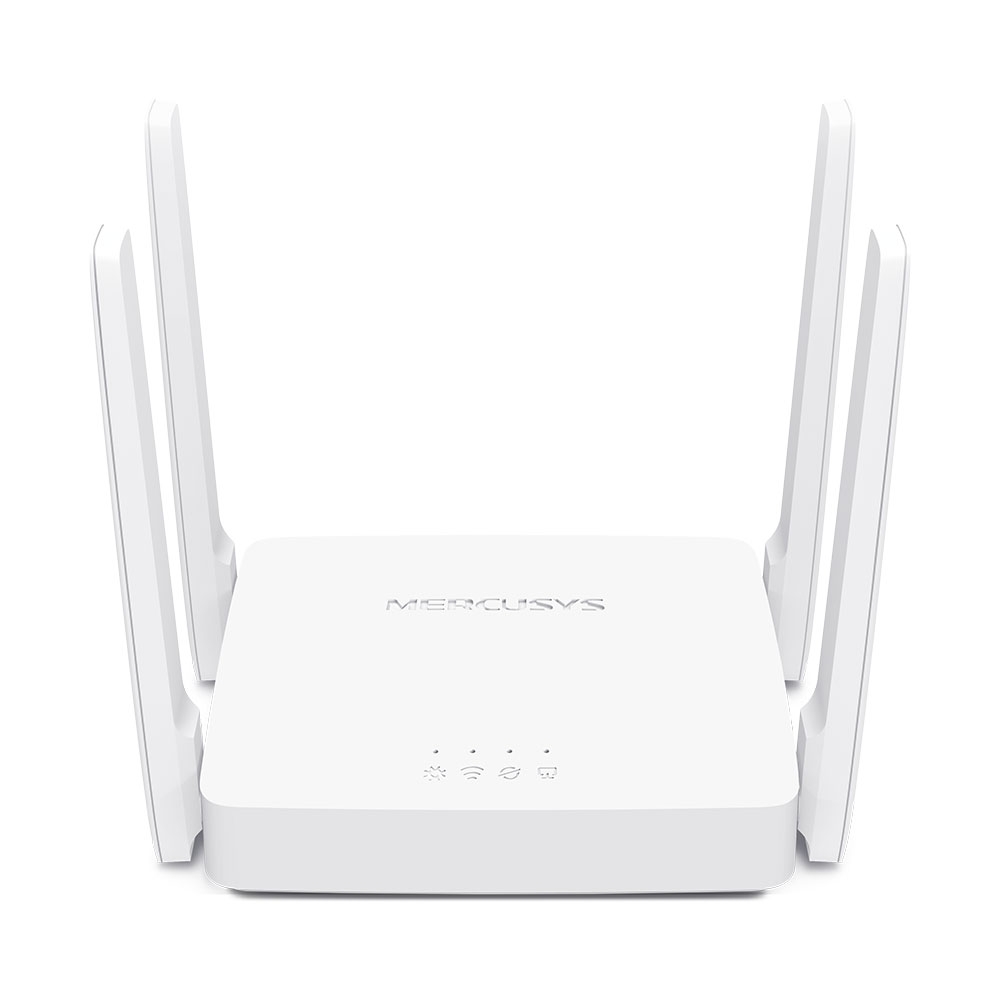

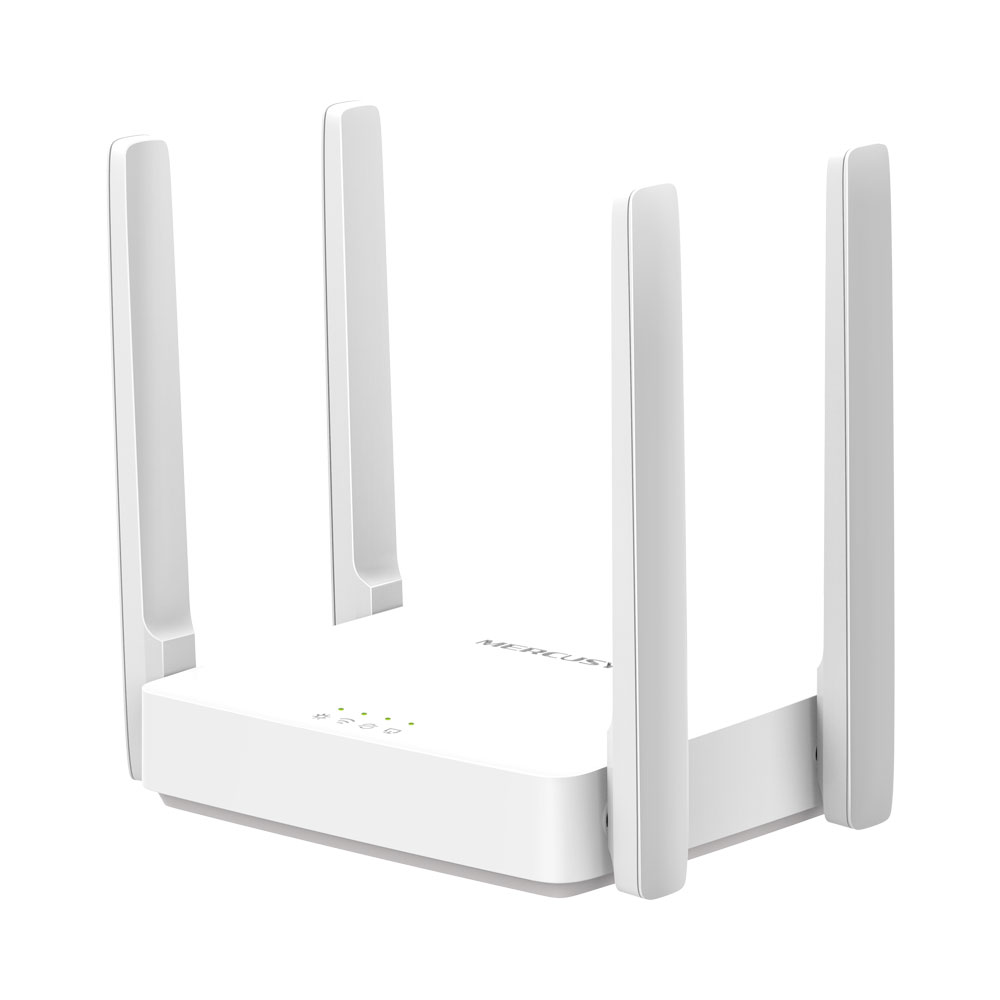

AC10 AC1200 Wireless Dual Band Router

Brand	Unbranded
Manufacturer	MERCUSYS
Model Number	NET-MER-AC10

The Mercusys AC10 AC1200 Wireless Dual Band Router is a high-speed router with a maximum speed of 1167 Mbps. It has 4 external antennas for strong Wi-Fi signals and can be easily installed with an intuitive web UI. It also has active parental controls and supports multiple modes. The router is compatible with IPTV and IPv6. It has 2.4 GHz and 5 GHz frequency bands and supports wireless security protocols. The router has a compact size and comes with a reset/WPS button, external power supply, and Ethernet ports.

FEATURES
Mercusys AC10 AC1200 Wireless Dual Band Router
High-Speed Wi-Fi Stream with fast and stable connections, reaching speeds up to 1167 Mbps (300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band)
4 High-Gain External Antennas Receive strong Wi-Fi signals in every corner of your home
Easy Installation Set up in minutes guided by an intuitive web UI
Active Parental Controls Protect your family by setting appropriate access policies for responsible, safe internet use
Multi-Mode Access Point Mode, Range Extender Mode, and Router Mode supported to satisfy all application scenarios
IPTV and IPv6 Supported
PRODUCT SPECIFICATIONS
Brand
Mercusys
Item model number
NET-MER-AC10
Product Type
Router
Wireless Standards
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency
2.4 GHz, 5 GHz
Transmission Power
2.4 GHz < 20dBm (EIRP)5 GHz < 23dBm (EIRP)
Wireless Security
WEP
WPA / WPA2
WPA-PSK / WPA2-PSK
Dimensions (W X D X H)
4.5 * 3.7 * 1.0 in (114 * 94 * 26 mm)
Button
Reset/WPS Button
External Power Supply
9V/0.85A
Antenna Type
4* 5 dBi Fixed Omni-Directional Antennas
Ethernet Ports
1* 10/100 Mbps WAN Port2* 10/100 Mbps LAN Ports
